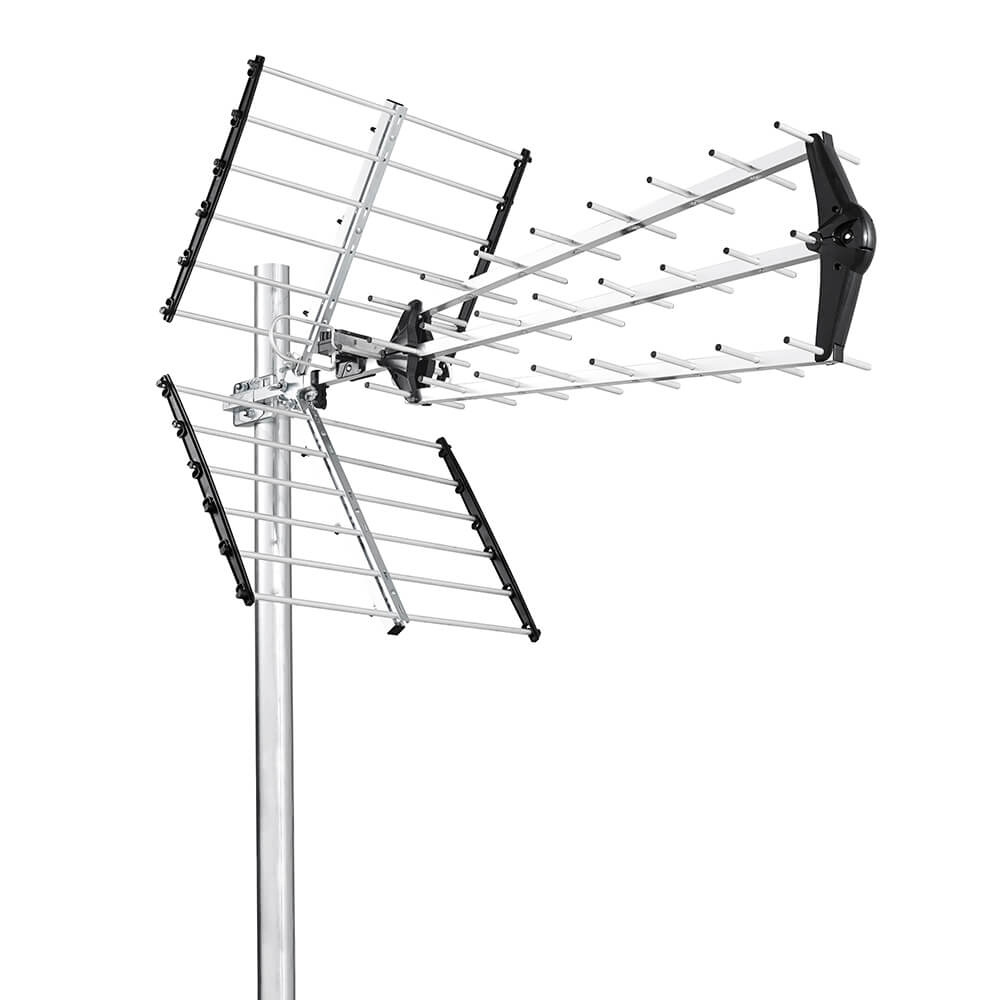

TRIAX Antenna Digi 343 LTE 700 Channel 21-48
- Easy installation
- Suitable for mast pipes with a diameter of 32-55mm.
- High performance antenna
- Stable and strong construction
- Specially designed for HDTV digital reception
- F-connector
Digi 343 21-48 is optimized for maximum gain in the frequency range 470-694 MHz. Above 694 MHz, the antenna transmits and protects the installation against LTE 700/800 interference. The Digi 343 E21-48 thus has the same function that has made other TRIAX antennas a success.
FREQUENCY AREA
Band UHF
Channels 21 ... 48
LTE protection @ 700Mhz
Frequency range UHF 470 ... 694 MHz
GAIN
Gain 11 ... 15 dBi
Gain @ 694 MHz (Ch. 48) 11.5 dBi
Gain @ 602 MHz (Ch. 37) 15 dBi
LOSS
Rejection @ 758 MHz (Ch. 56) 13 dB
Rejection @ 788 MHz (Ch. 60) 15 dB
ELECTRICAL DATA
Front and rear ratio Horizontal 15-25 dB
Impedance 75 Ω
CONNECTIONS
Connection type F-female
MECHANICAL DATA
Material Aluminum
Opening angle Horizontal ± 19 °
Opening angle Vertical ± 23 °
Element 26
5702661089626EAN:
