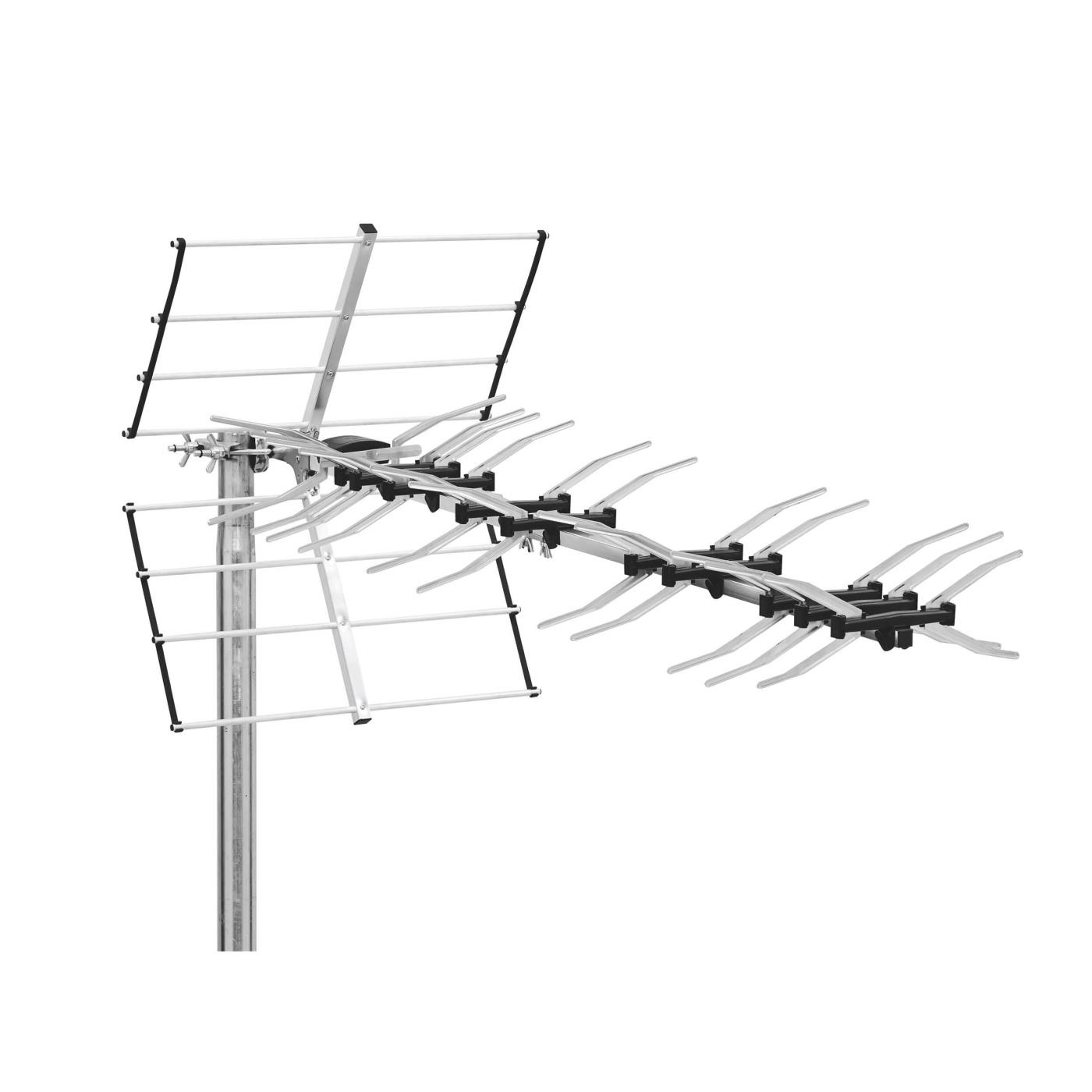

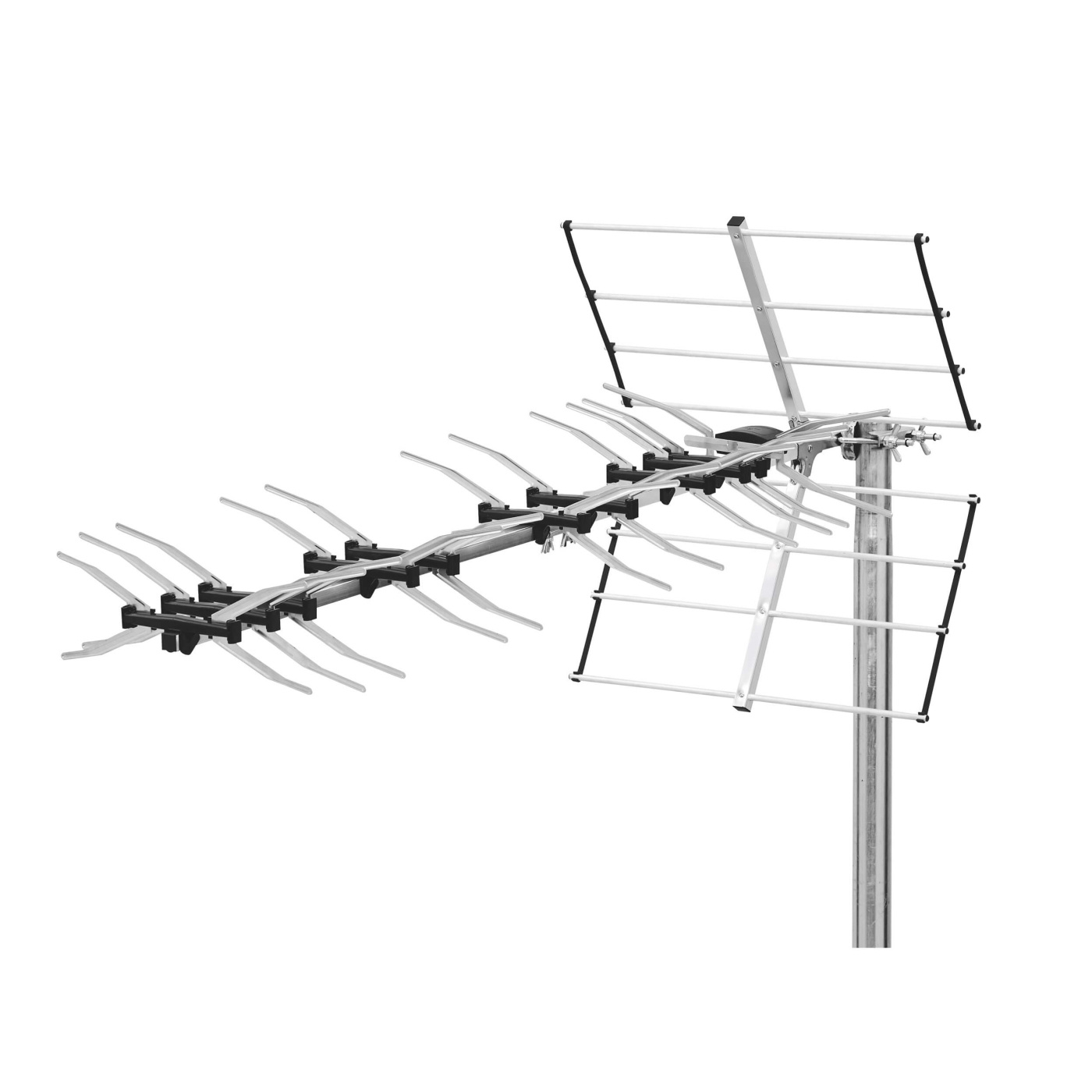

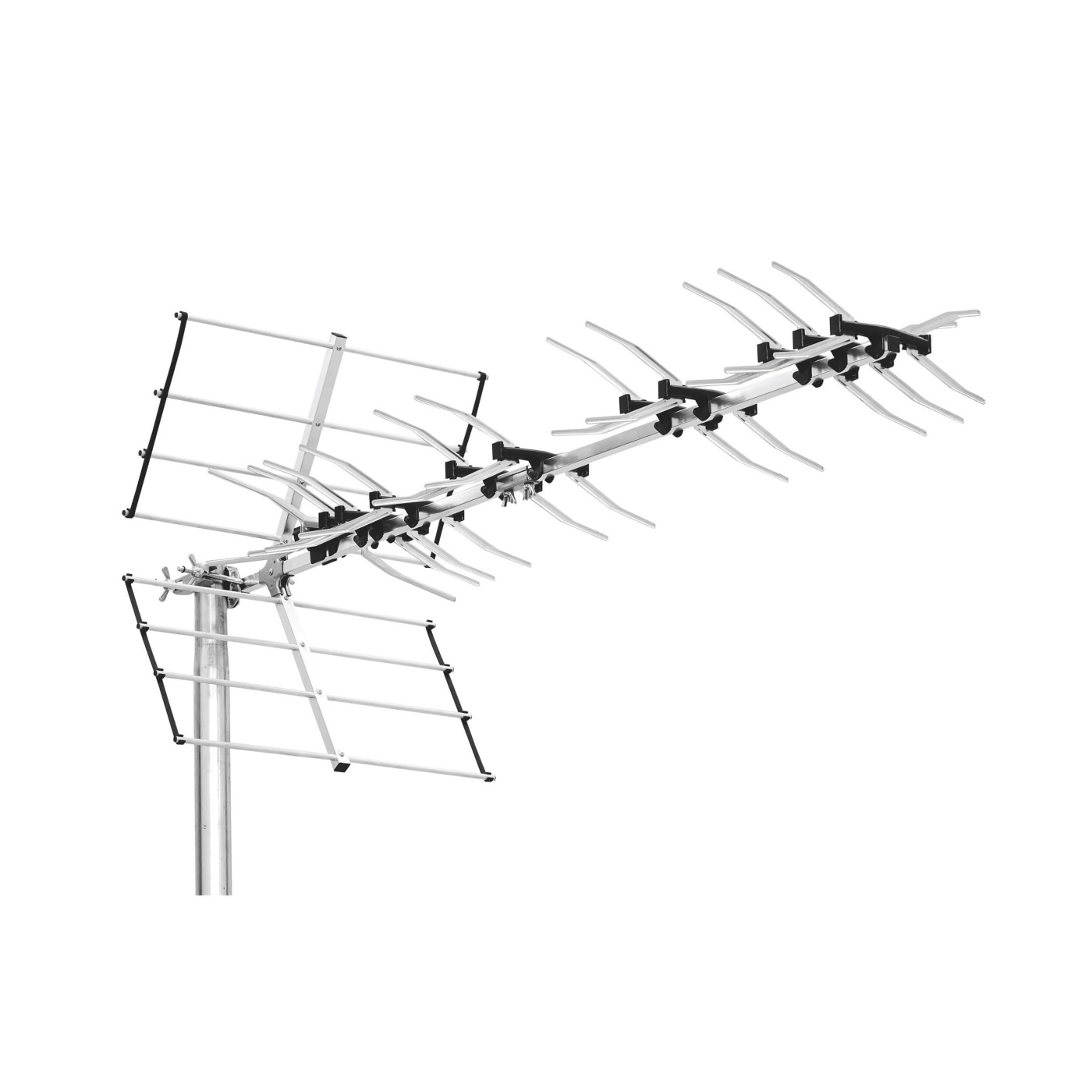

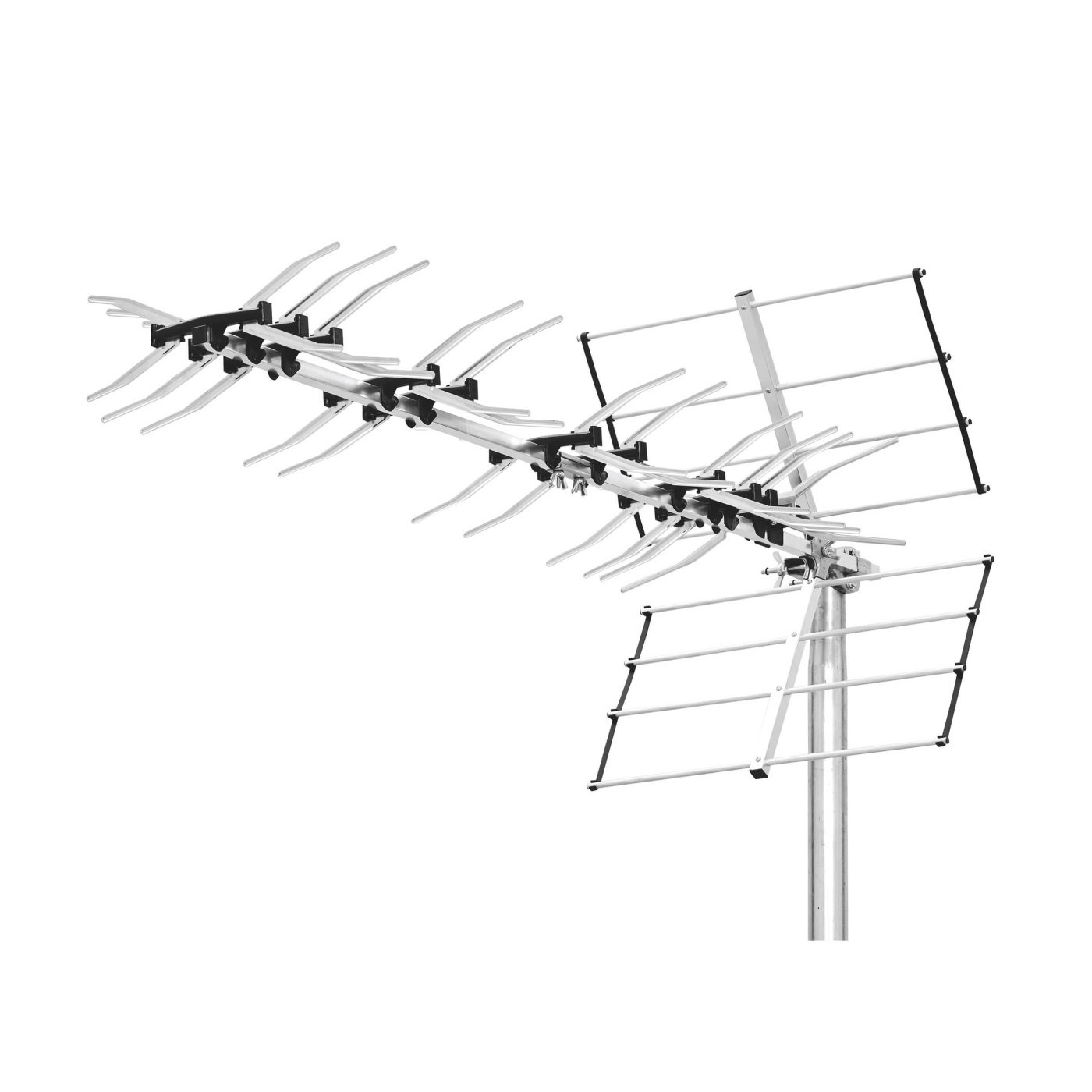

UNIX Antenna 52EL K21-48 LTE 700 SE/FI
- 52 elements UHF antenna
- Interference protection from LTE 700 & 800 signals
- Mechanical filtering for higher gain

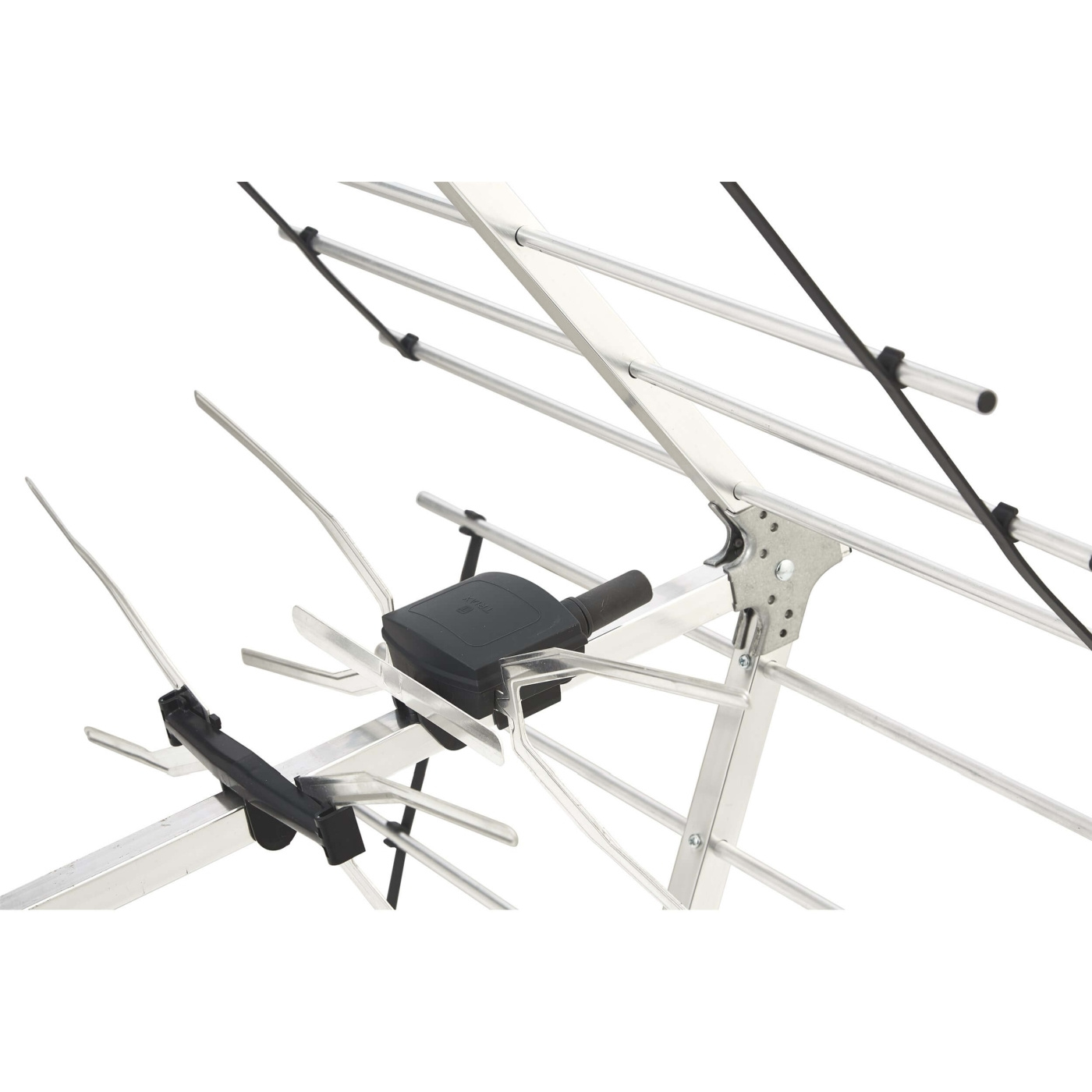

- Corrosion and weather proof dipole housing

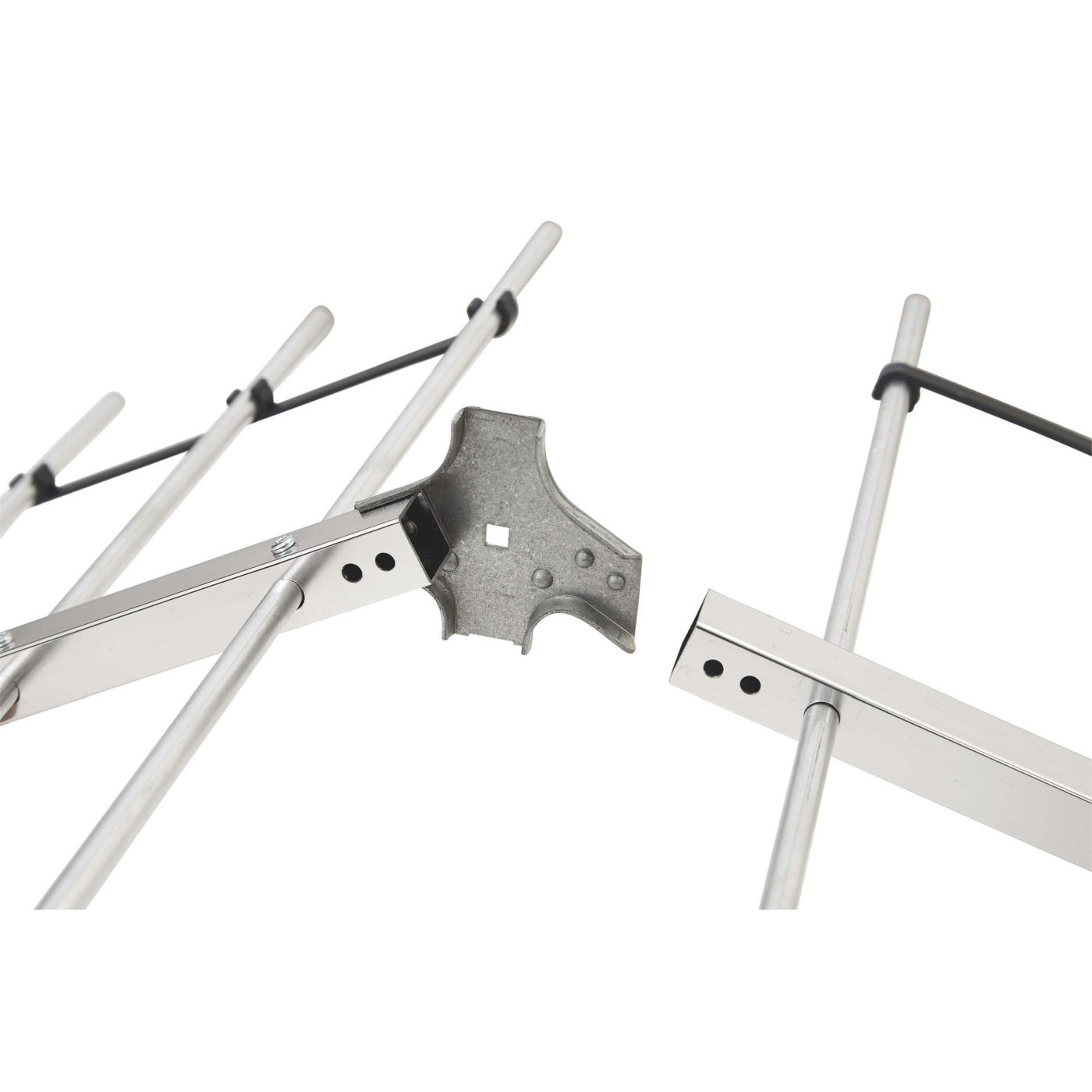

Designed to receive DTT signals in the 470-694 MHz range. Quick and easy installation with semi-assembled aerials. Reliable high-quality aerials secures end-consumer satisfaction.
Frequency
Band: B IV/V UHF
Channels: 21...48
Frequency range UHF: 470...694 MHz
LTE protection: 700
Gain
Gain @ 474 MHz (Ch 21): 12,3 dBi
Gain @ 602 MHz (Ch 37): 14,0 dBi
Gain @ 694 MHz (Ch 48): 13.1 dBi
Loss
Rejection @ 758 MHz (Ch56): 7,1 db
Rejection @ 788 MHz (Ch56): 8,1 db
Electrical
Front to back ratio - horisontal: 20 db
Impendance: 75 ohm
Connector: F-male
5702661055607EAN:
