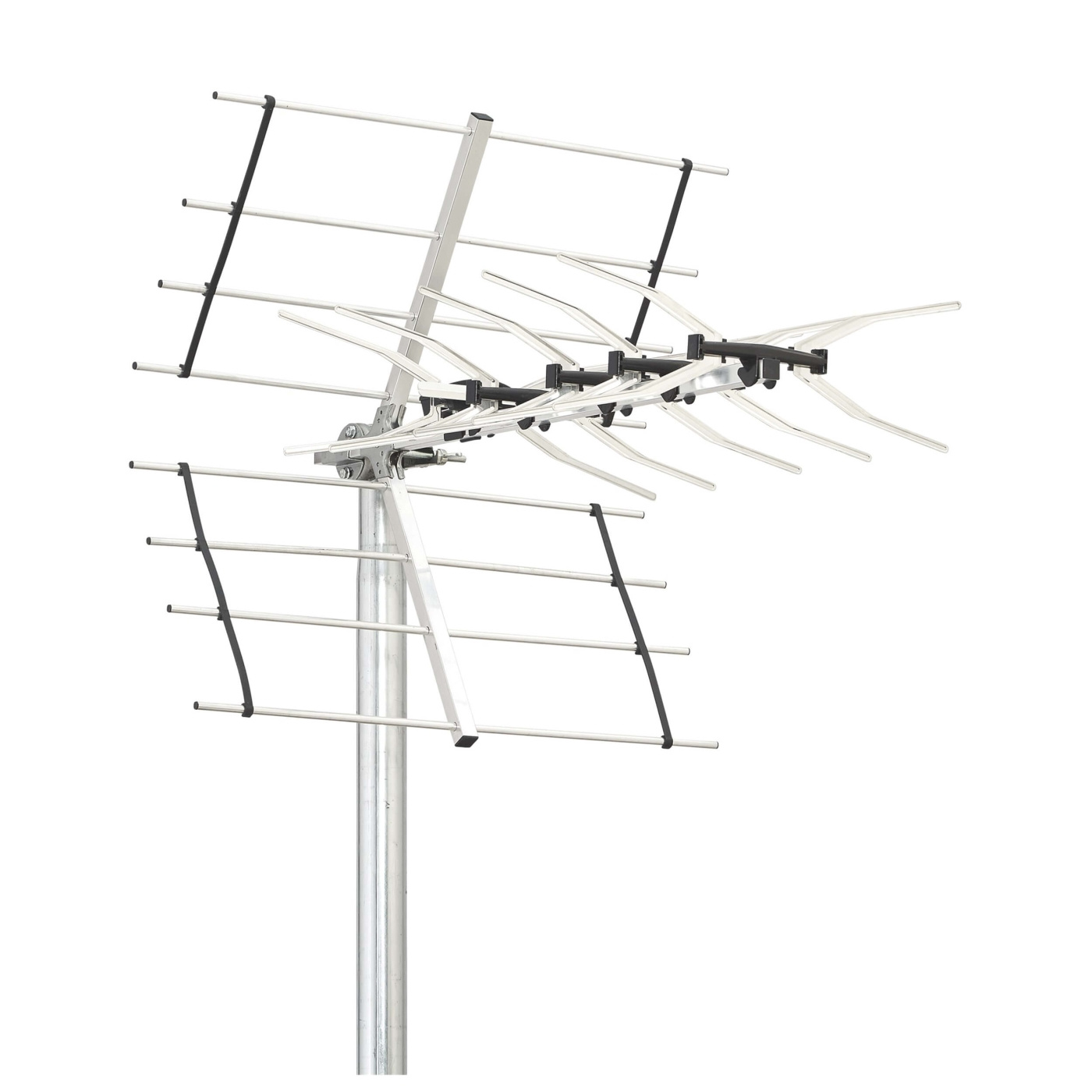

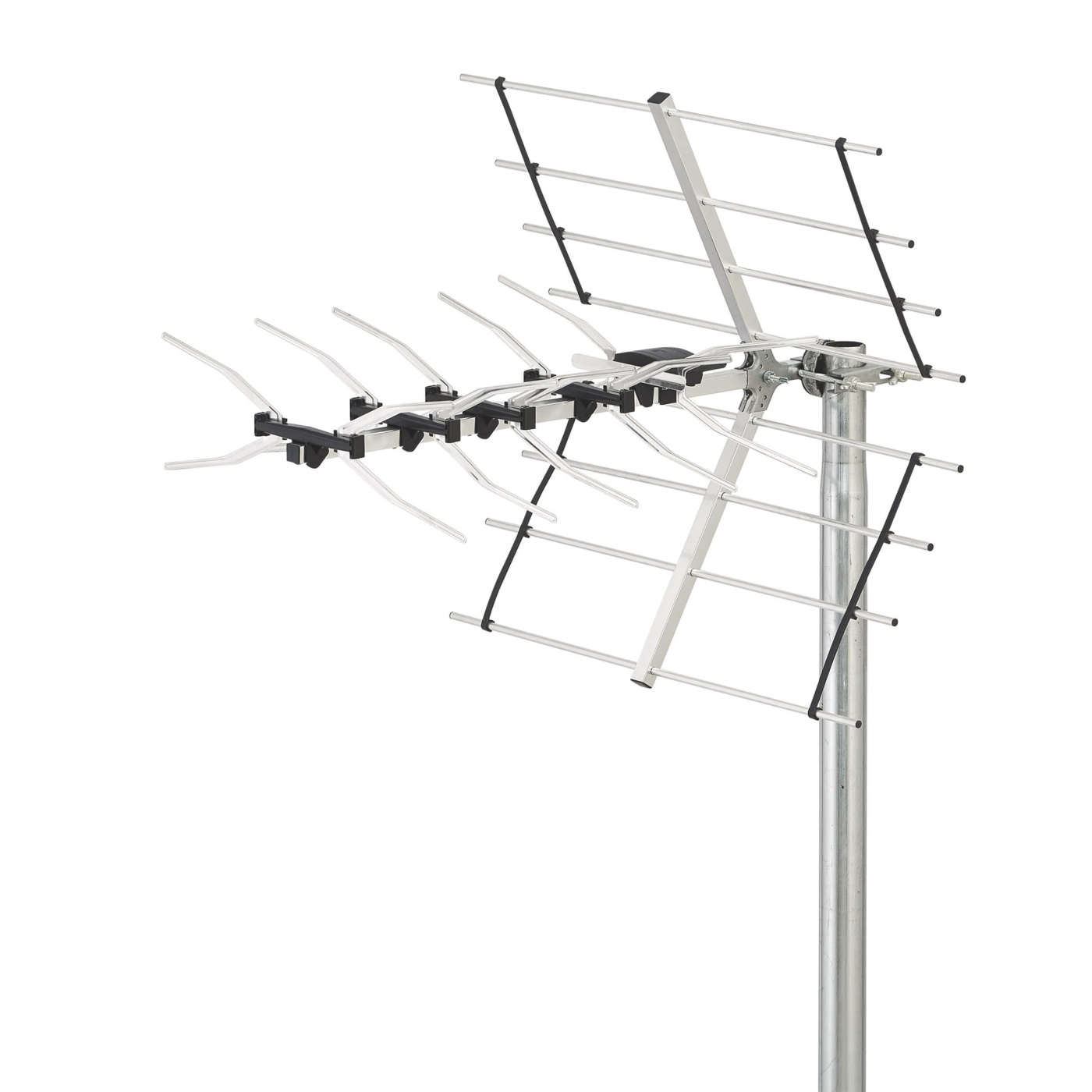

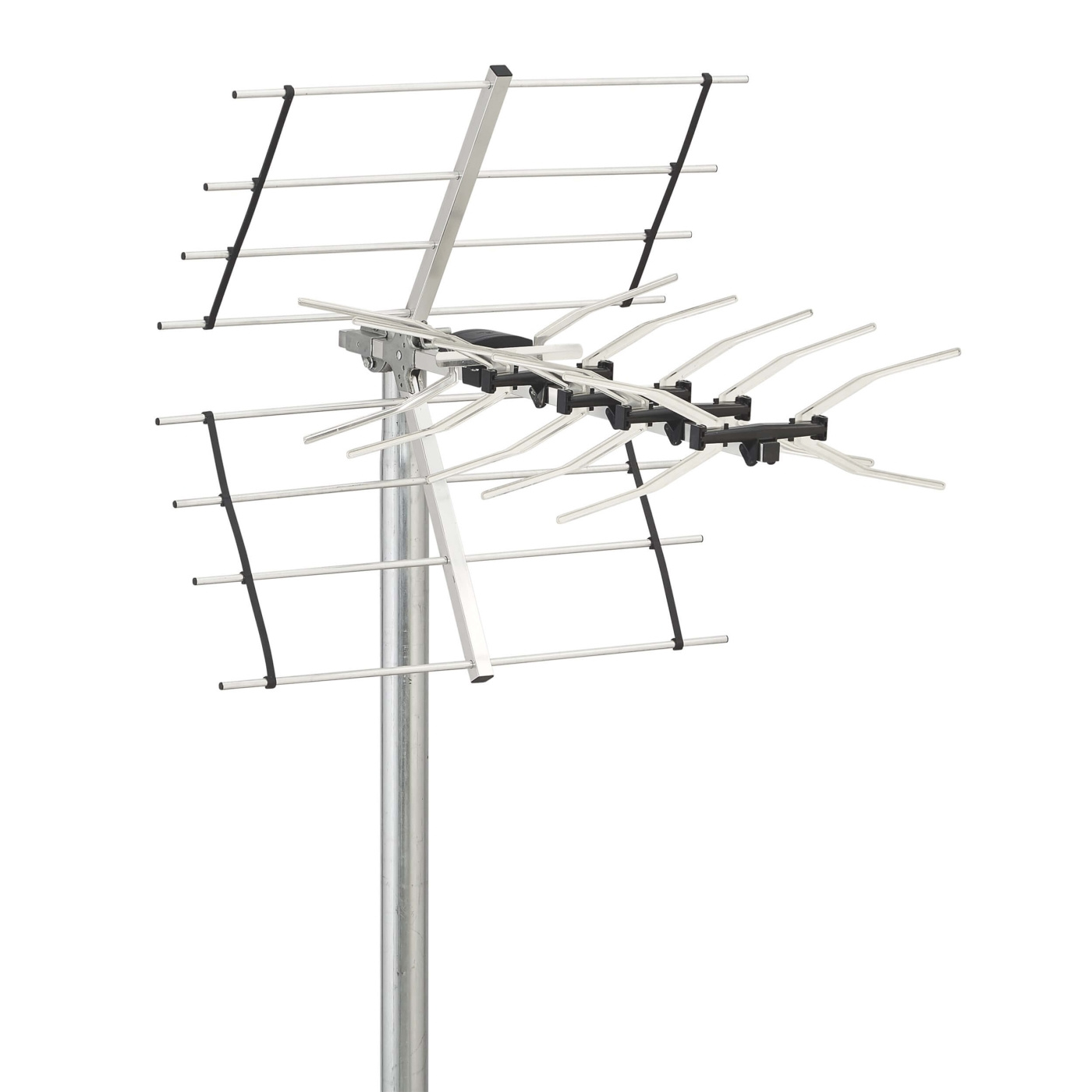

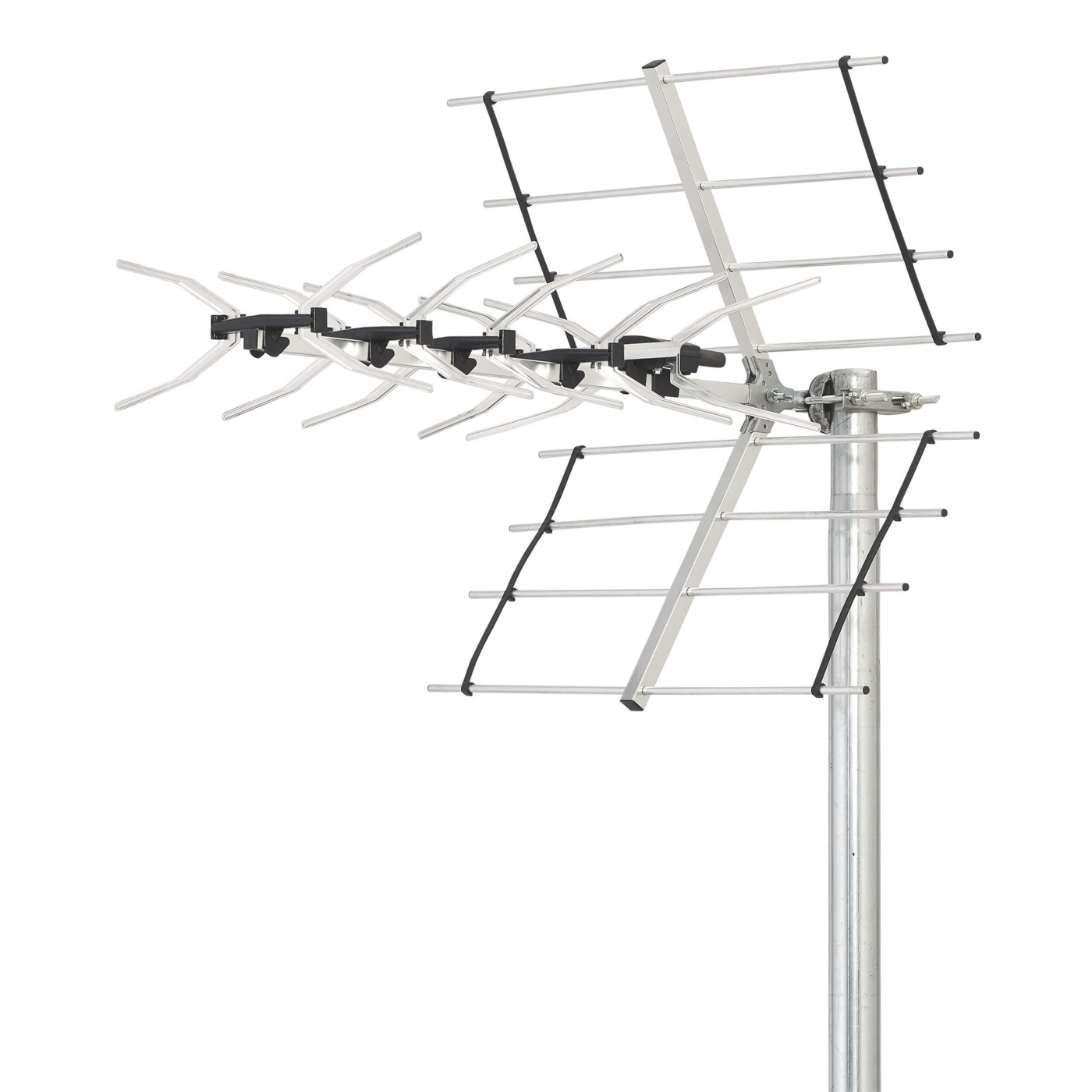

Unix Antenna 32 LTE700 Channel 21-48 SE/FI
- Interference protection from LTE 700 & 800 signals
- Disruption free installation from rooftop to outlet.

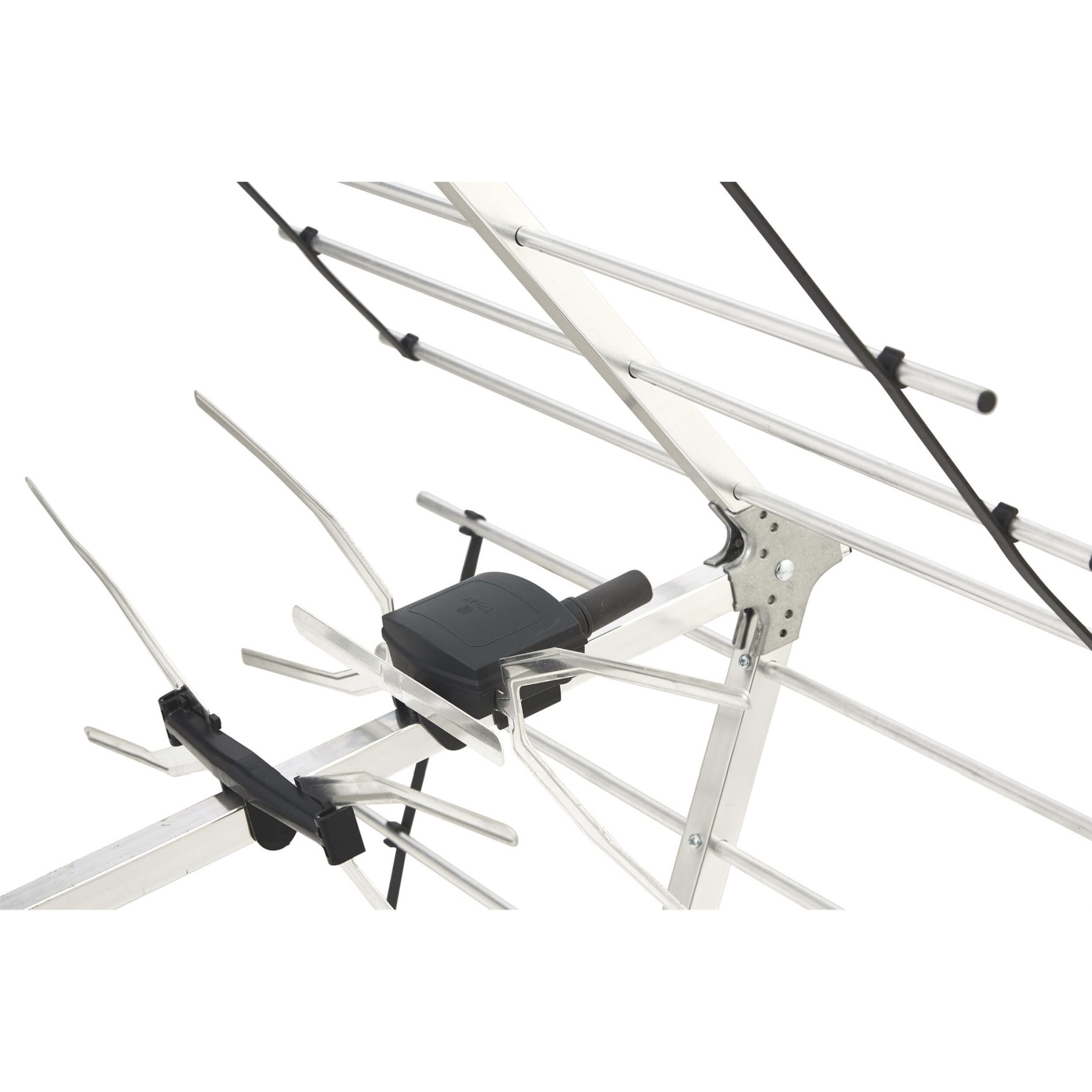

- Corrosion and weather proof dipole housing
- Mechanical filtering for higher gain

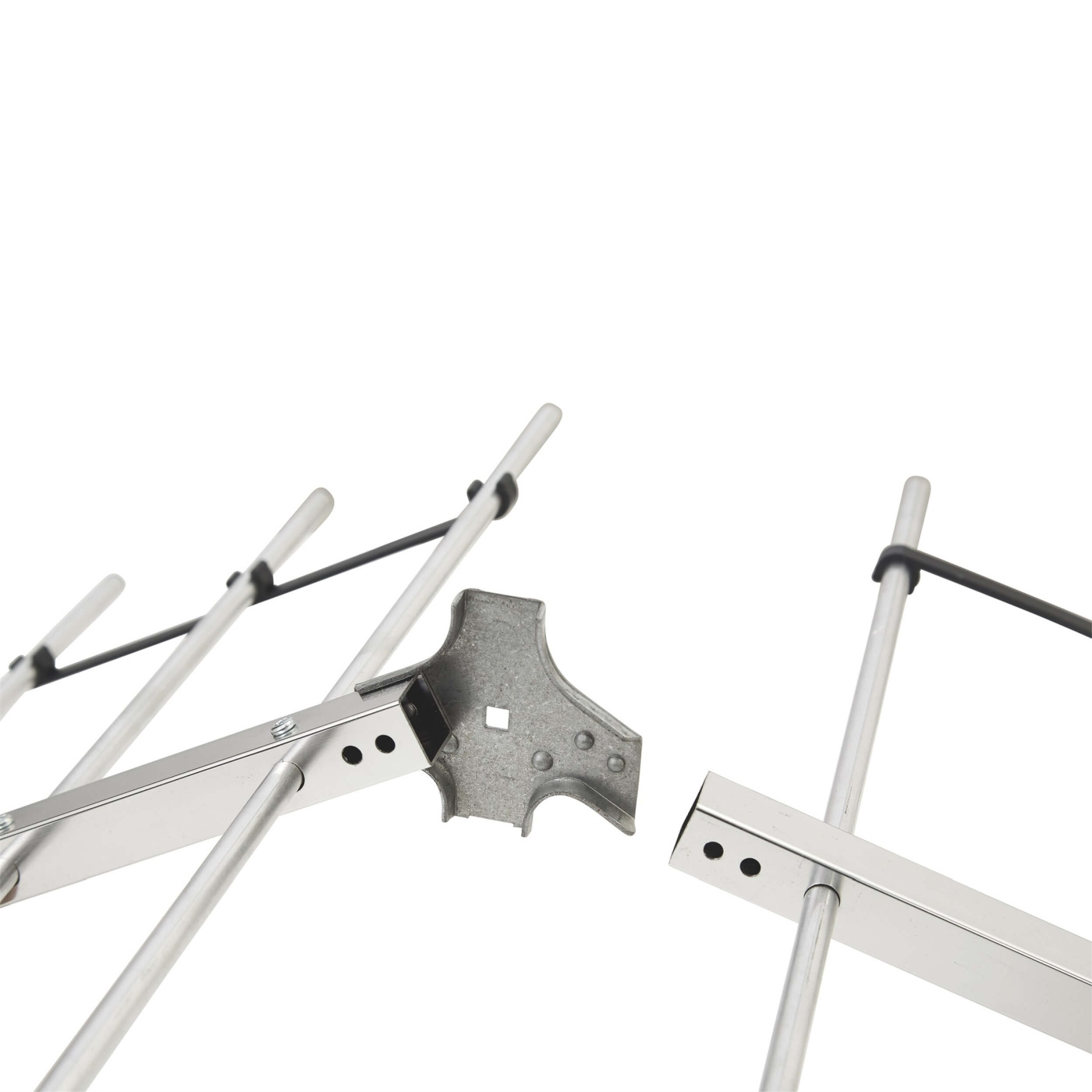

Quick and easy installation with semi-assembled aerials. Designed to receive DTT signals in the 470...694 MHz range.
Characteristics
Type - Unix 32
Frequency
Band B IV/V UHF
Channels 21...48
Frequency range UHF 470...694 MHz
LTE protection 700
Gain
Gain 12.5 max dBi
Gain @ 474 MHz (Ch. 21) 12.4 dBi
Gain @ 602 MHz (Ch. 37) 11.8 dBi
Gain @ 694 MHz (Ch. 48) 11.2 dBi
Loss
Rejection @ 758 MHz (Ch. 56) 8.6 dB
Rejection @ 788 MHz (Ch. 60) 9.2 dB
Electrical
Front to back ratio - horisontal 22 dB
Connectors
Connector Type F-female
Mechanical
Elements 32
Windload 58 N
Beamwidth horisontal ±35 °

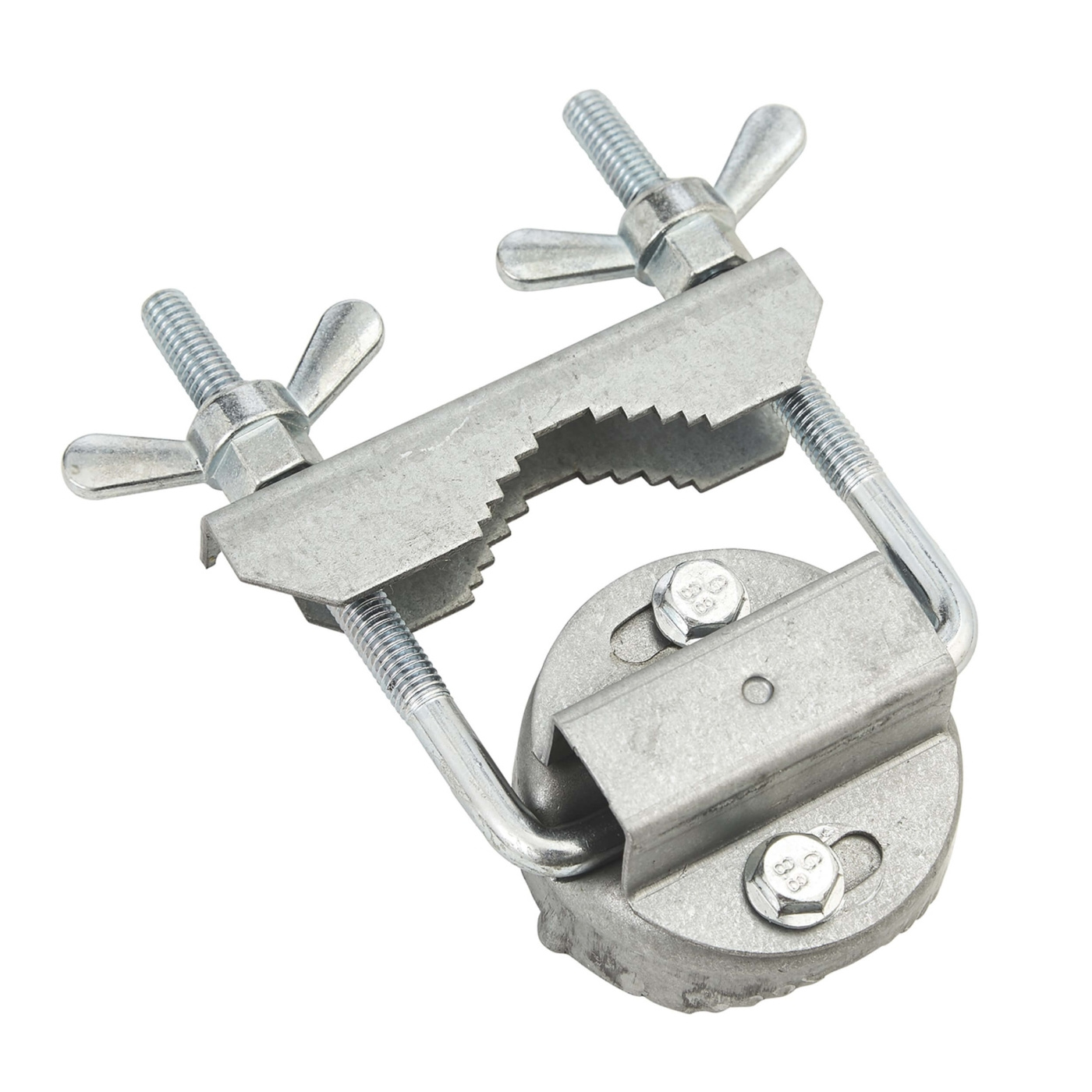

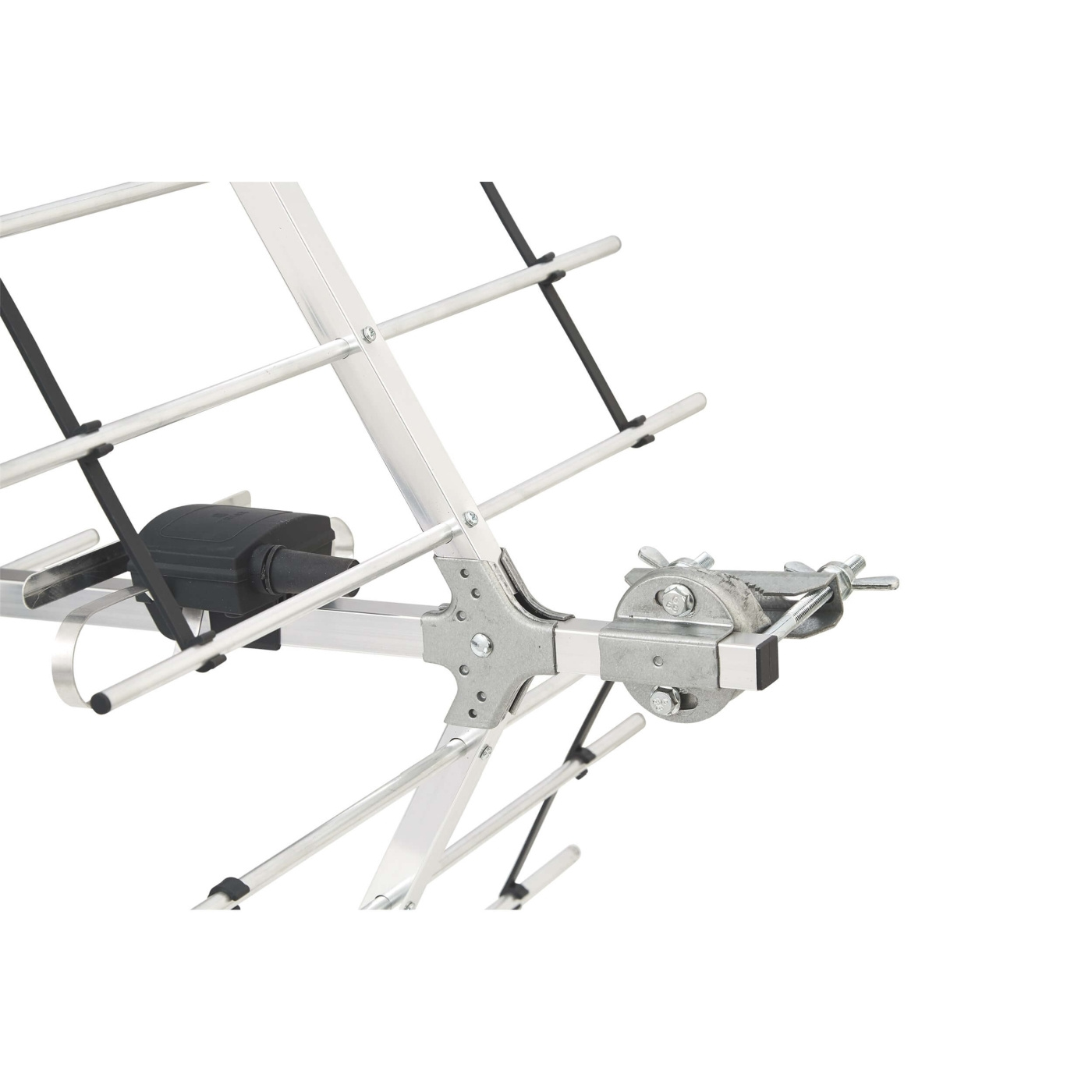

Bracketry Mast - backmounting
Main material Aluminium
Product Length 777 mm
Product Width 580 mm
5702661055508EAN:
