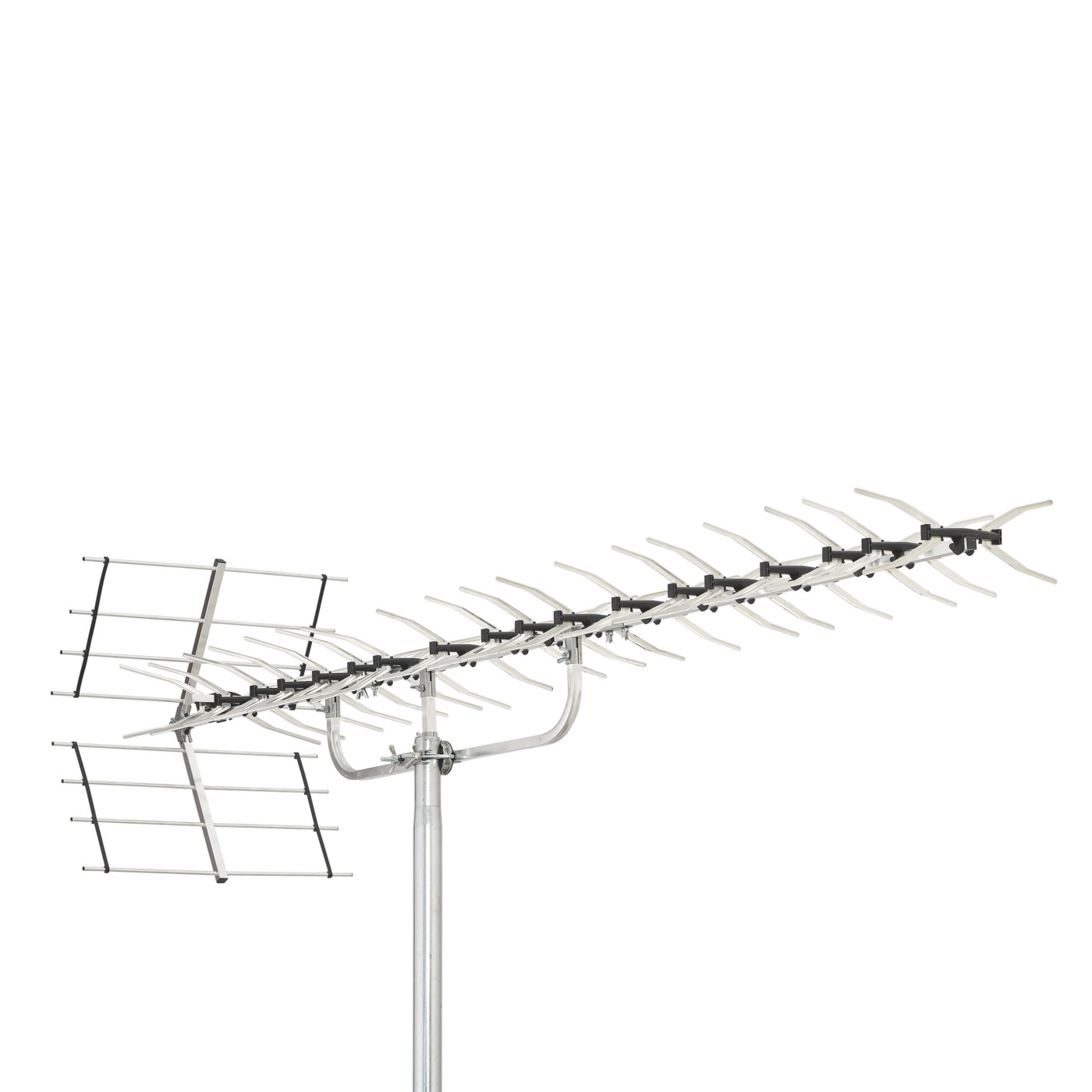

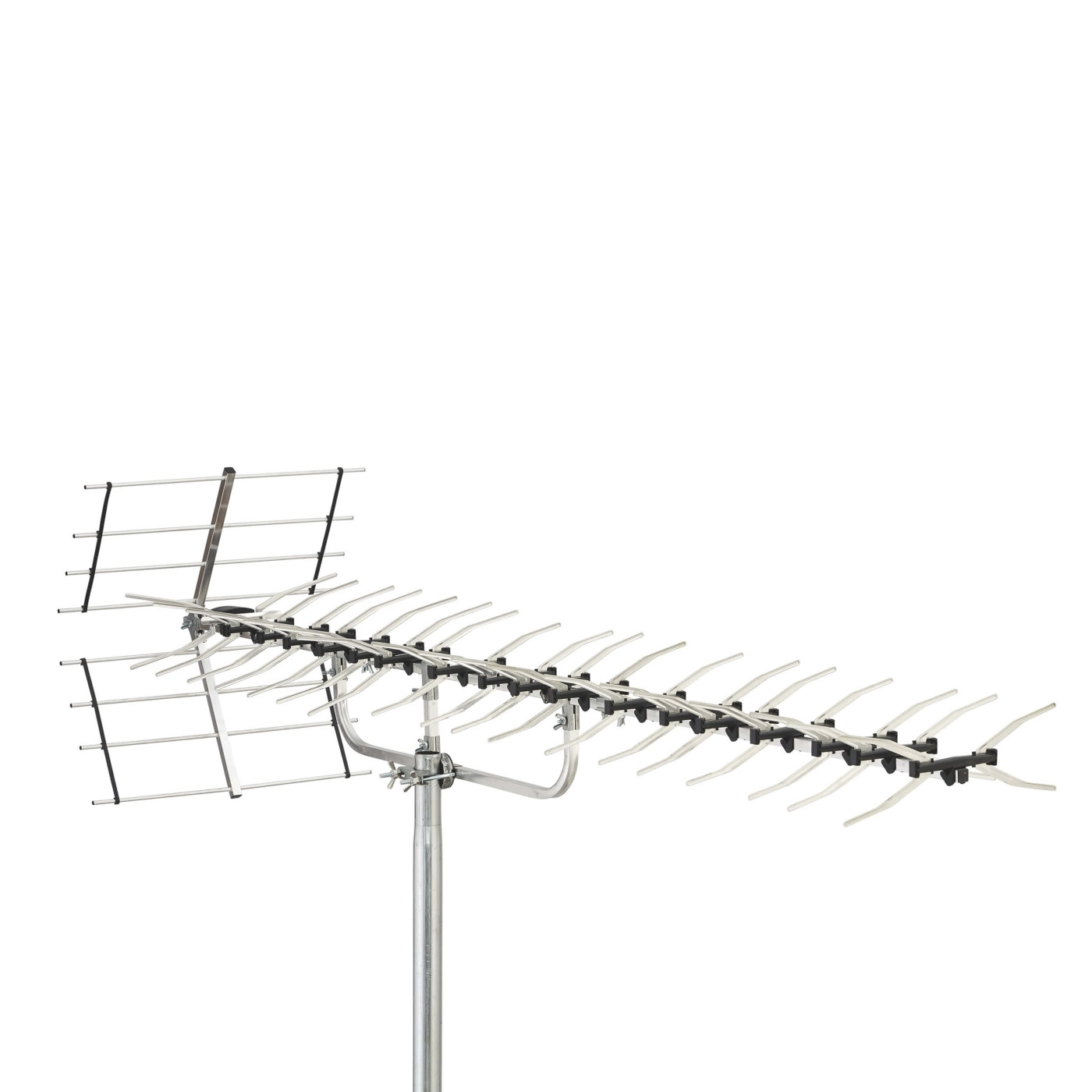

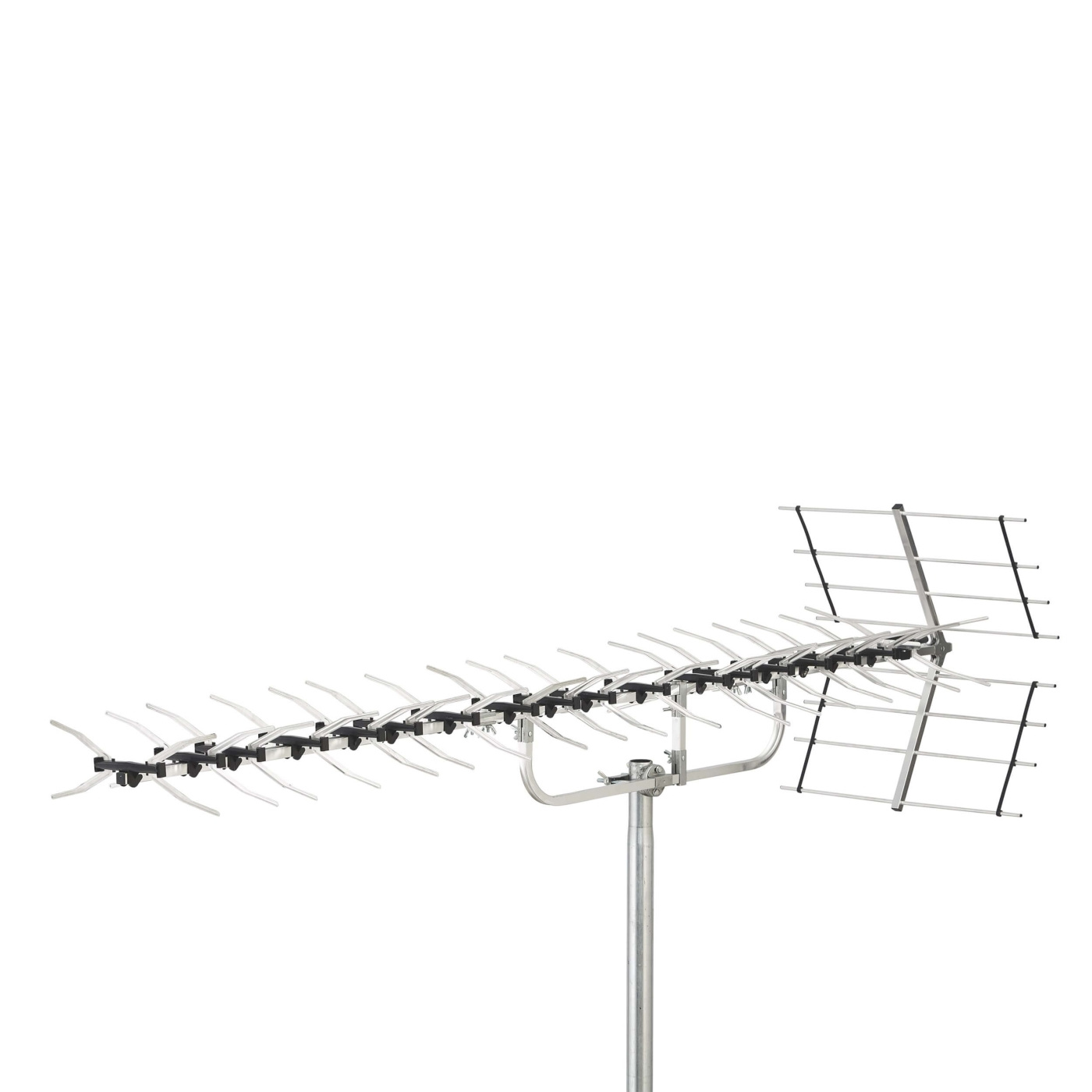

Unix antenna 100 LTE700 Channel 21-48 SE / FI
- Disturbance-free installation from ceiling to outlet
- Interference protection against LTE 700 and 800 signals

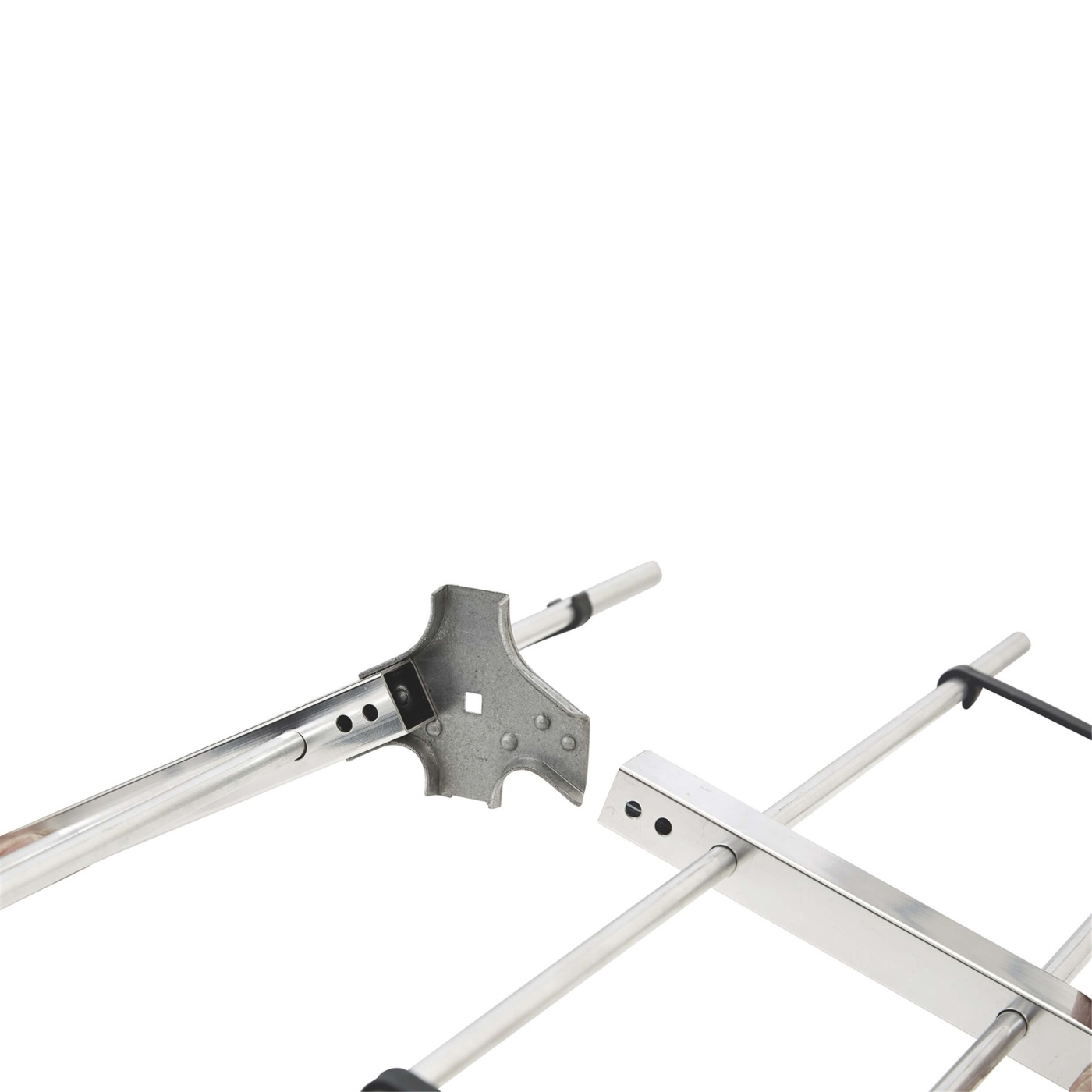

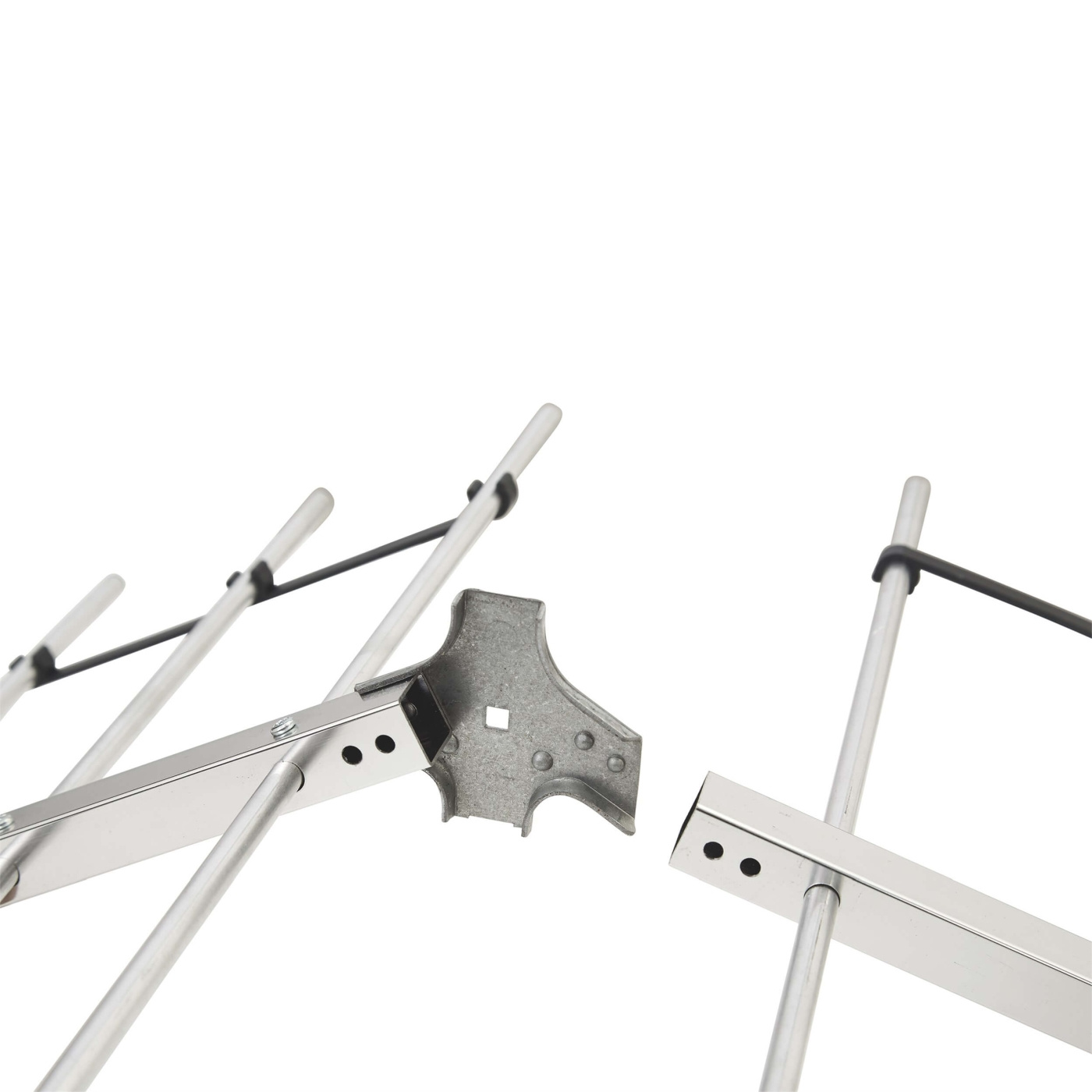

- Quick and easy installation with pre-assembled elements
- Mechanical filtration without signal loss

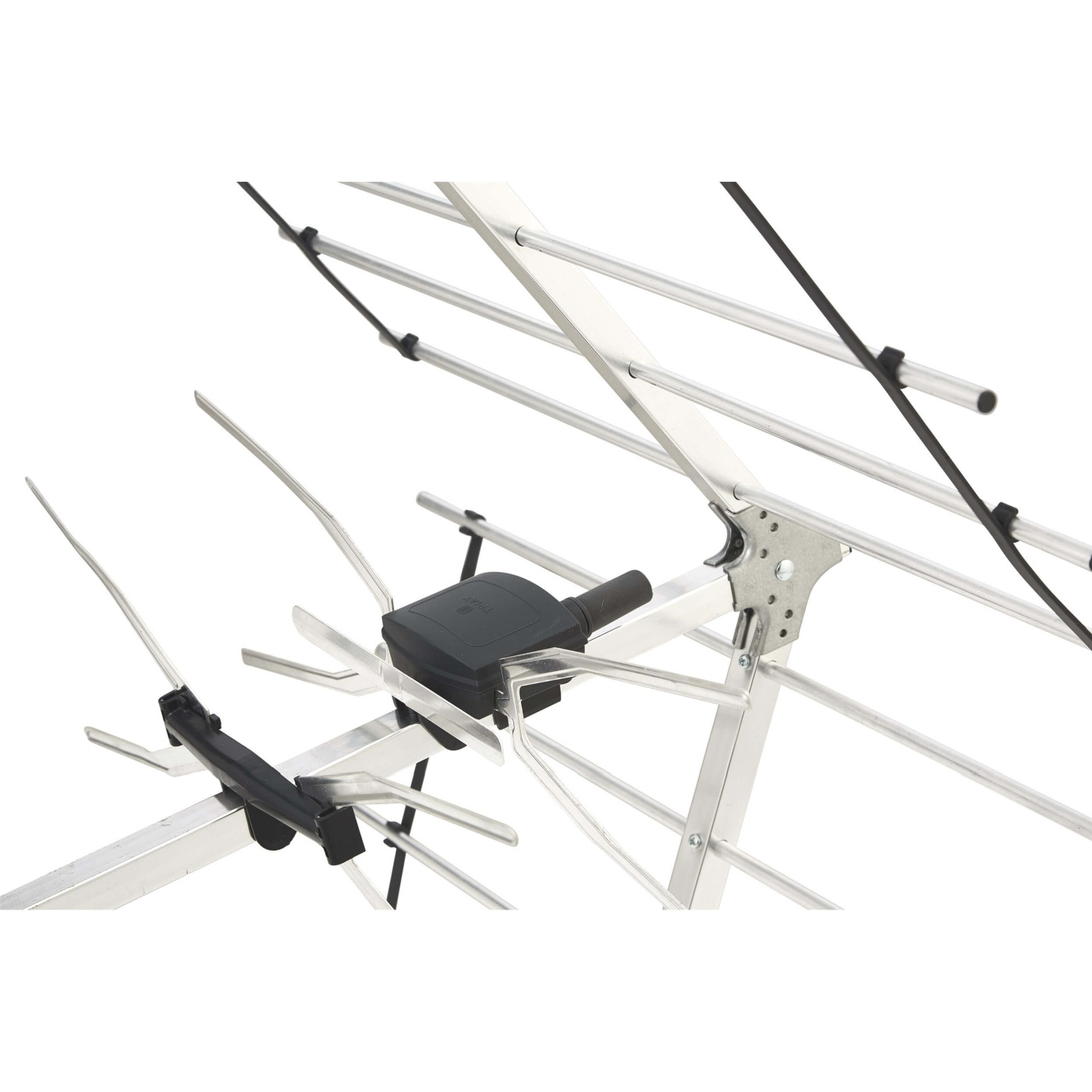

Reliable, high quality antennas that guarantee satisfied end customers. Anti-corrosion and weatherproof dipole housing. Designed to receive DVB-T2 HD signals in the 470-694 MHz range
CHARACTERISTICS
Type UNIX 100
FREQUENCY RANGE
Band B IV / V UHF
Channels 21 ... 48
Frequency range UHF 470 ... 694 MHz
LTE protection @ 700Mhz
GAIN
Gain 17 max dBi
Gain @ 474 MHz Ch 21 13.3 dBi
Gain @ 602 MHz (Ch. 37) 16.2 dBi
Gain @ 694 MHz (Ch. 48) 13.9 dBi
LOSS
Rejection @ 758 MHz (Ch. 56) 18.3 dB
Rejection @ 788 MHz (Ch. 60) 14.6 dB
ELECTRICAL DATA
Front and rear ratio Horizontal 20 dB
FITTINGS
Connector F-female
MECHANICAL DATA
element 80
Wind load 162 N
Opening angle Horizontal ± 15 °
material Aluminum
Length 2343 mm
Width 580 mm
5702661055706EAN:
