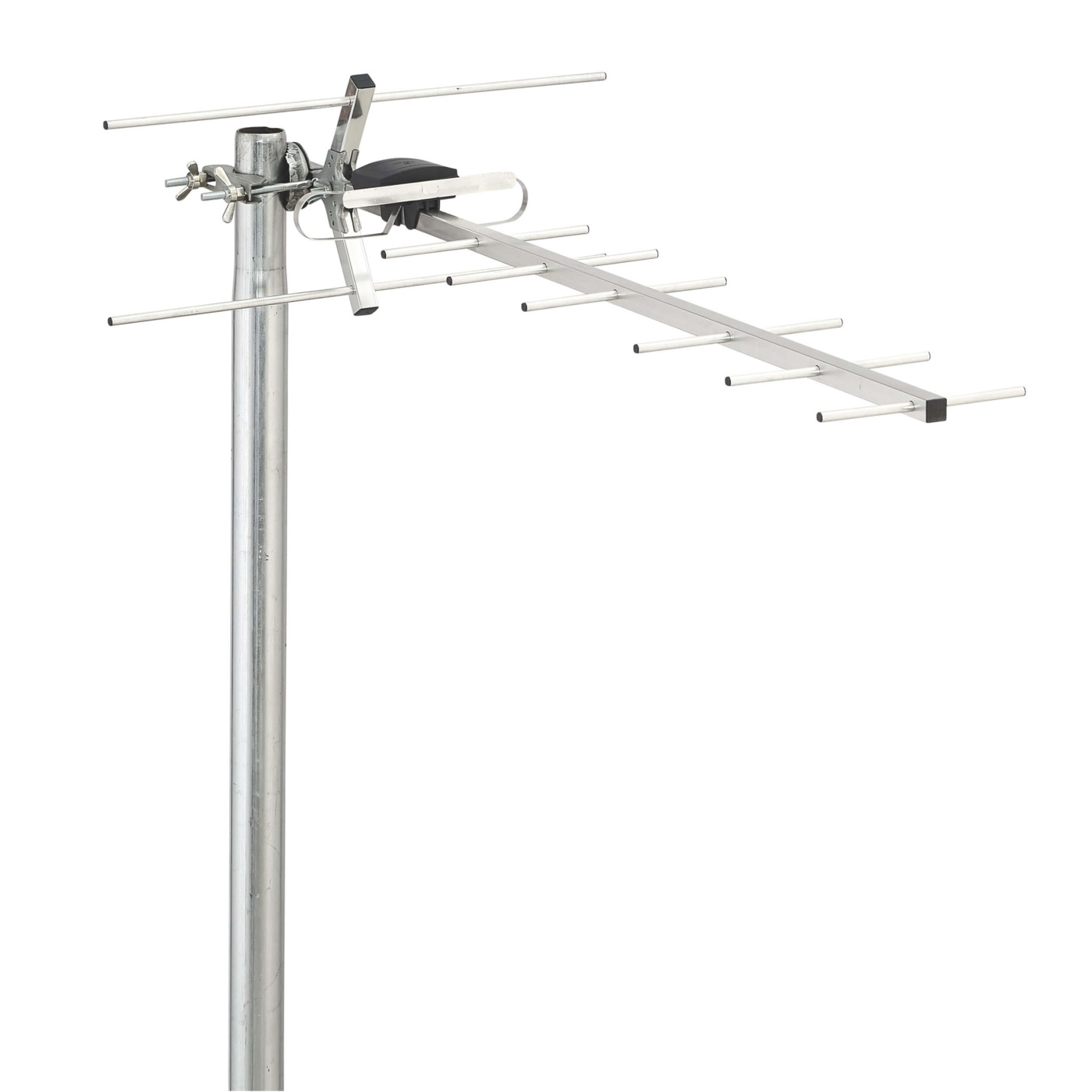

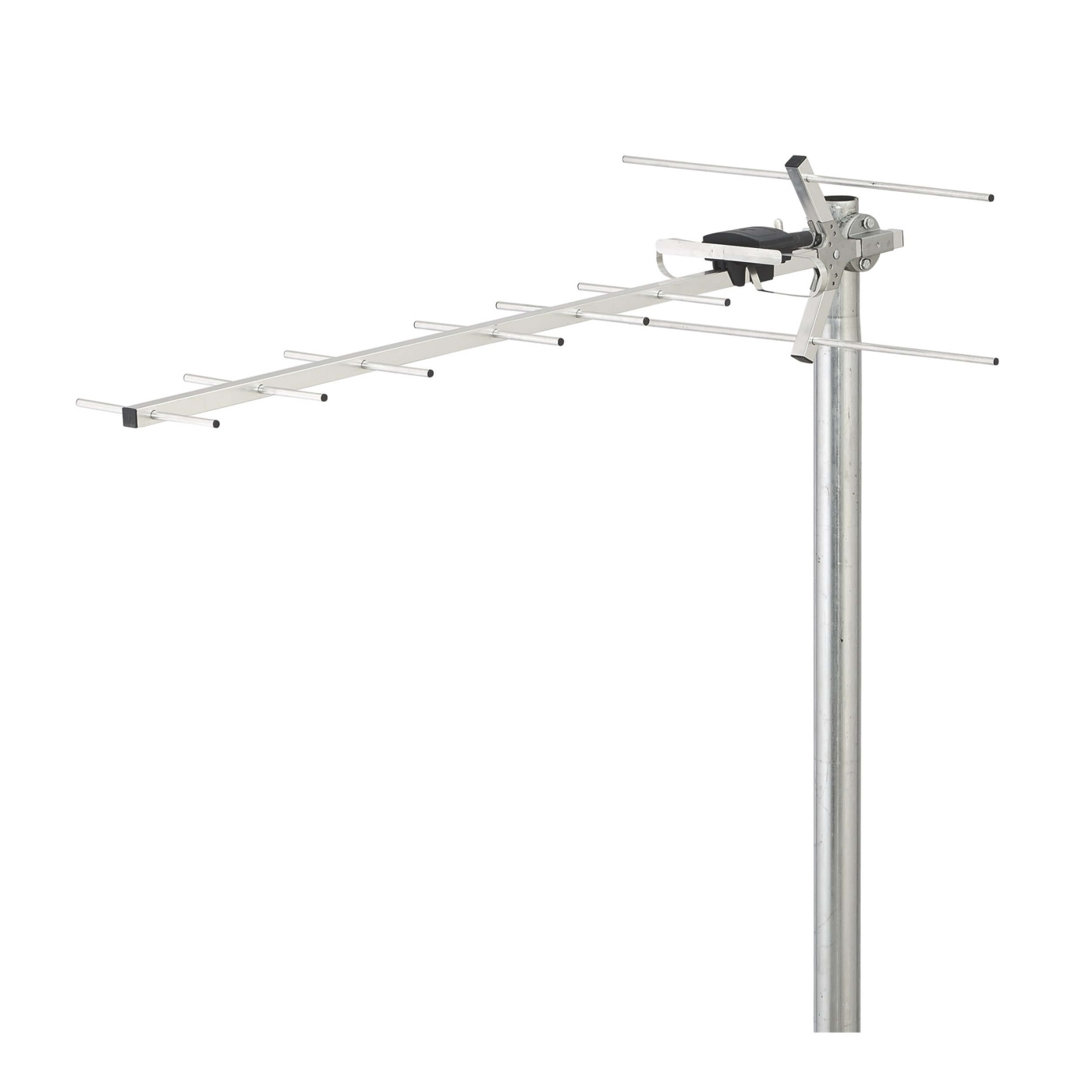

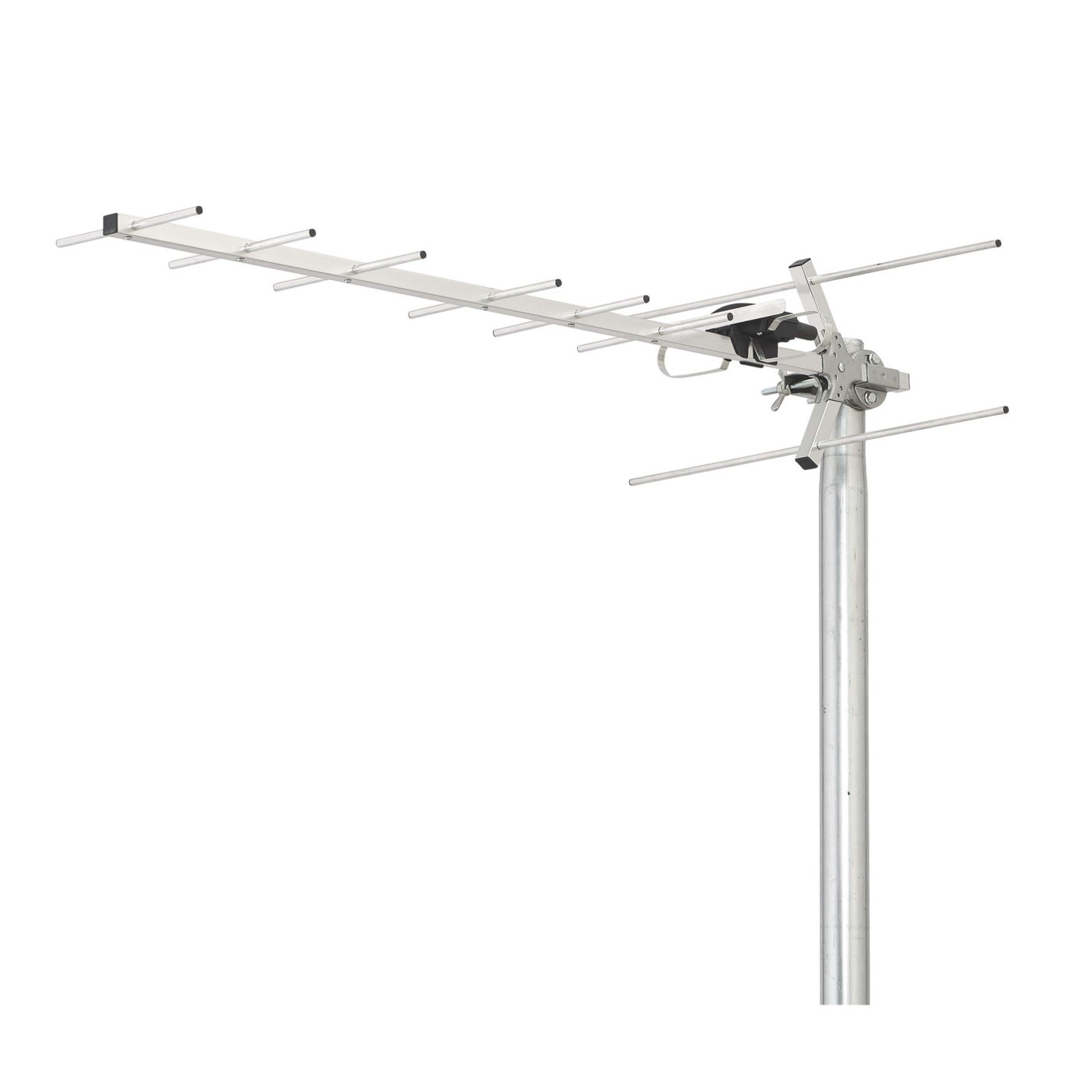

TRIAX Antenna Digi 10 LTE700 Channel 21-48 SE / FI
- Noise-free installation from ceiling to socket
- Interference protection against LTE 700 and 800 signals
- Quick and easy installation with pre-assembled elements
- Mechanical filtration without signal loss
- Corrosion protected and weatherproof dipole housing
Reliable, high quality antennas that guarantee satisfied end customers. Designed to receive DVB-T2 HD signals in the 470-694 MHz range.
CHARACTERISTICS
Type Digi 10
FREQUENCY RANGE
Band B IV / V UHF
Channels 21 ... 48
Frequency range UHF 470 ... 694 MHz
LTE protection @ 700Mhz
GAIN
Gain max 13 dBi
Amplification @ 474 MHz Ch 21 9.5 dBi
Gain @ 602 MHz (Ch. 37) 9.2 dBi
Amplification @ 694 MHz (Ch. 48) 12.1 dBi
LOSS
Rejection @ 758 MHz (Ch. 56) 4.3 dB
Rejection @ 788 MHz (Ch. 60) 7.6 dB
ELECTRICAL DATA
Front and rear ratio Horizontal 15 dB
FITTINGS
Connector F-female
MECHANICAL DATA
element 10
Wind load 22 N
Opening angle Horizontal ± 30 °
material Aluminum
Length 1085 mm
Width 480 mm
5702661054600EAN:
