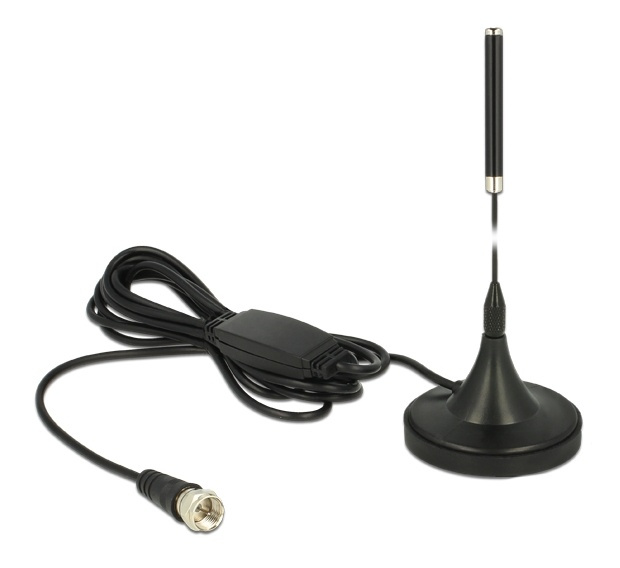

Delock DAB+ Antenna, F Plug, 21dBi active omnidirectional, 50 Ohm, RG-174, magnetic stand, 2m cable, black
This active DAB + antenna is designed to receive digital broadcasting DIGITAL RADIO. The integrated amplifier improved the reception signal.
Specification
• Connector: F plug
• Frequency range: 174 ~ 240 MHz
• Gain: 21 dBi
• Impedance: 50 Ohm
• VSWR: 2.0:1
• Power supply: 5 V
• Current consumption: 2 ~ 6 mA
• Operating temperature: -10 °C ~ 70 °C
• Cable type: RG-174
• Cable diameter: 2.7 mm
• Cable length: 2 m
• Dimension (LxW) antenna: 251x1.6mm
• Dimension (WxH) stand: 53x33mm
4043619124138EAN:
