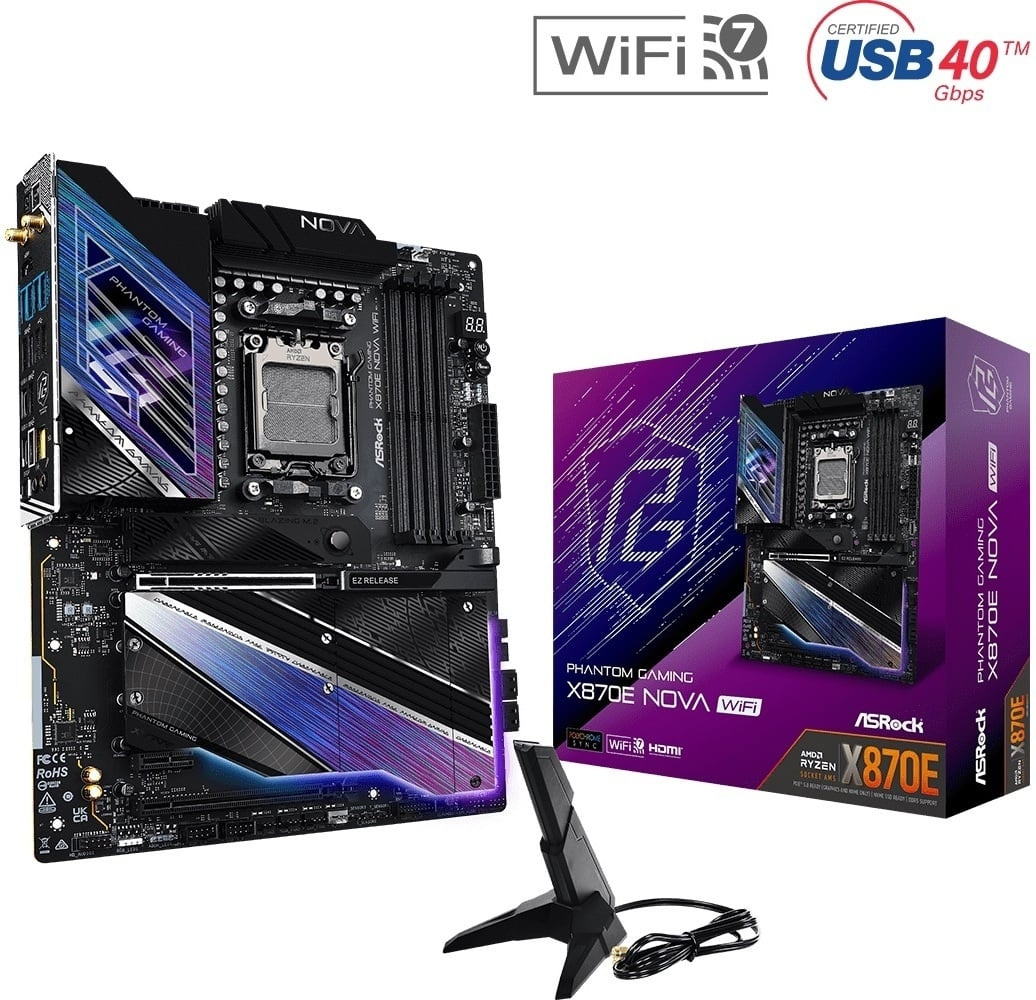

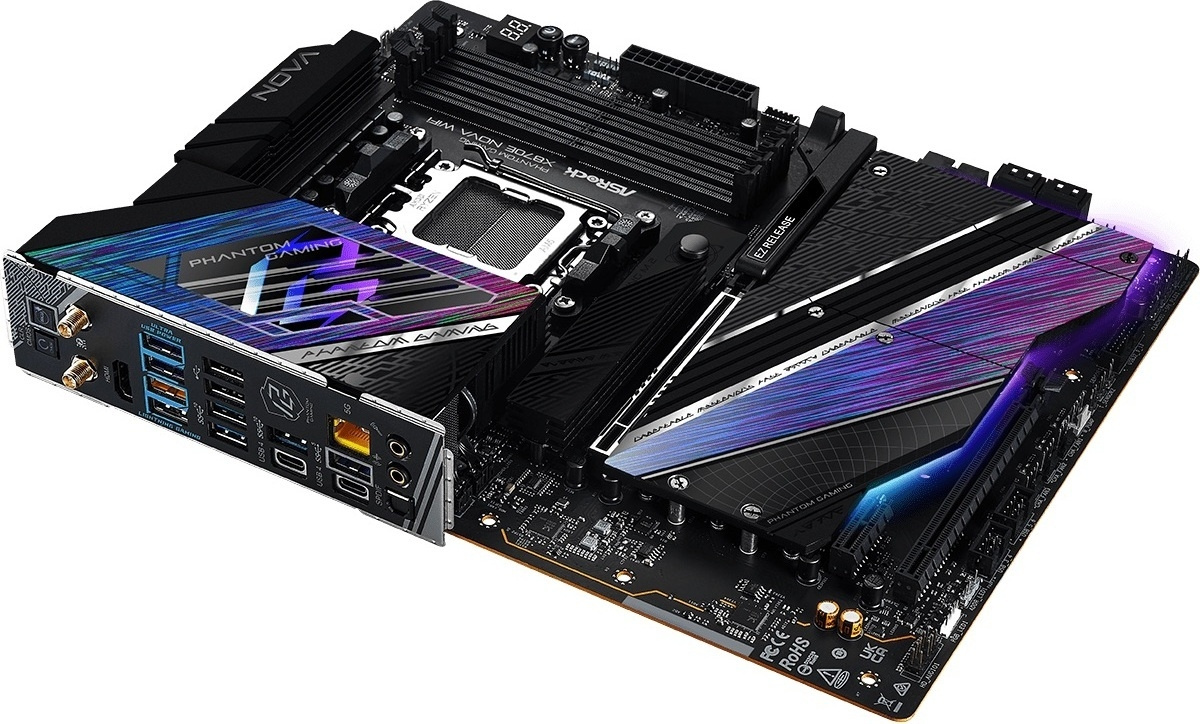

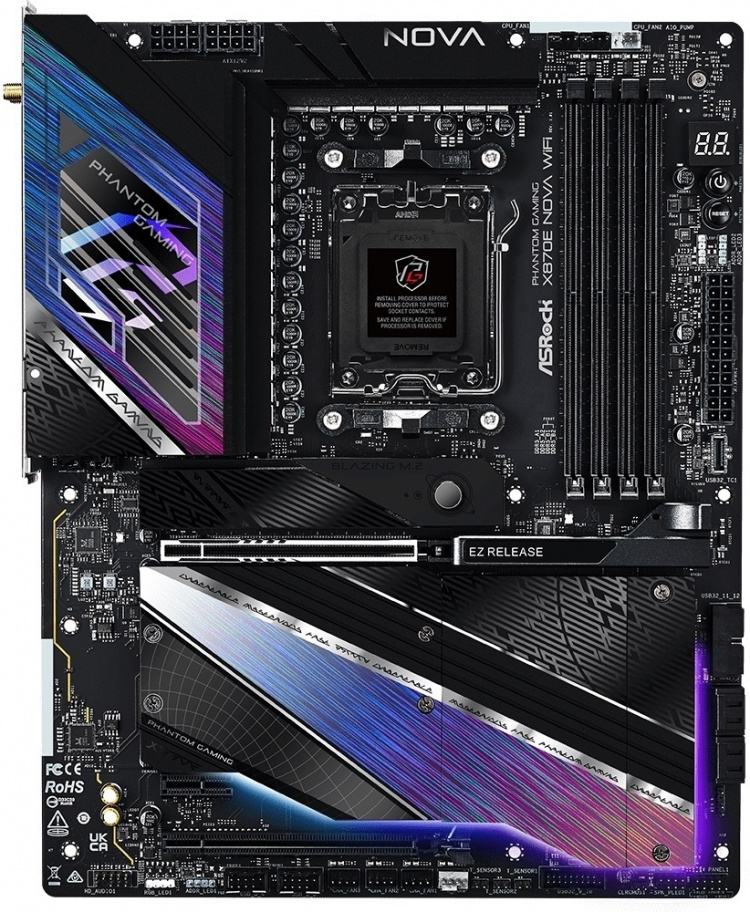

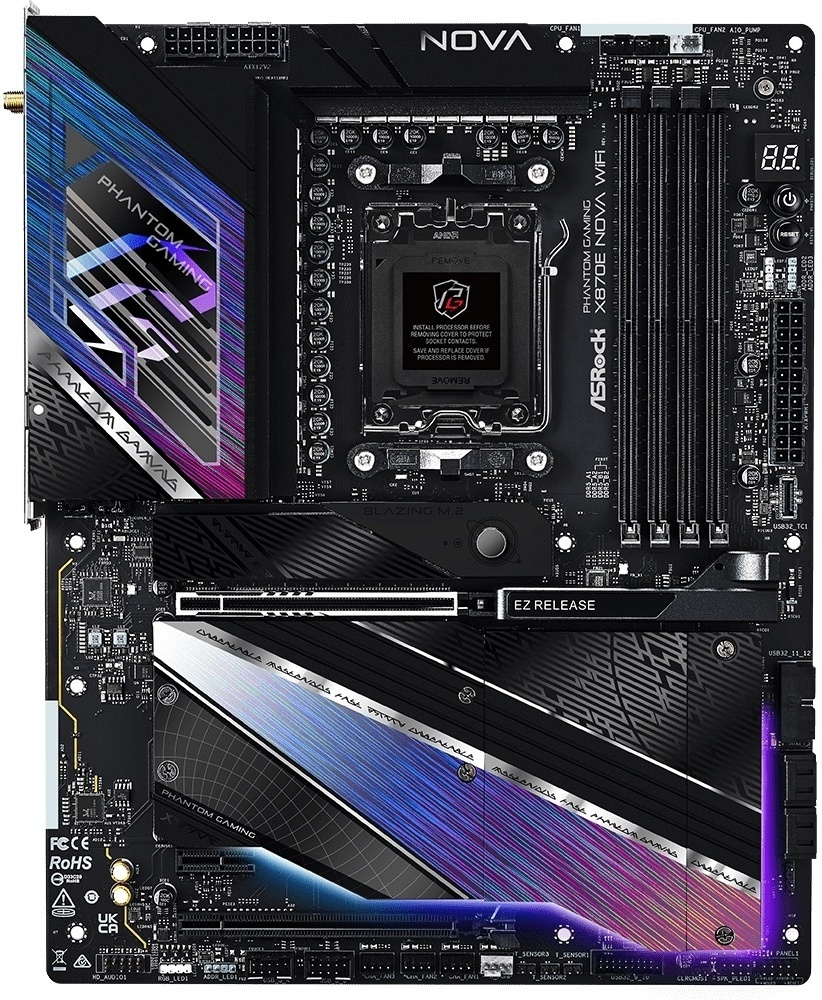

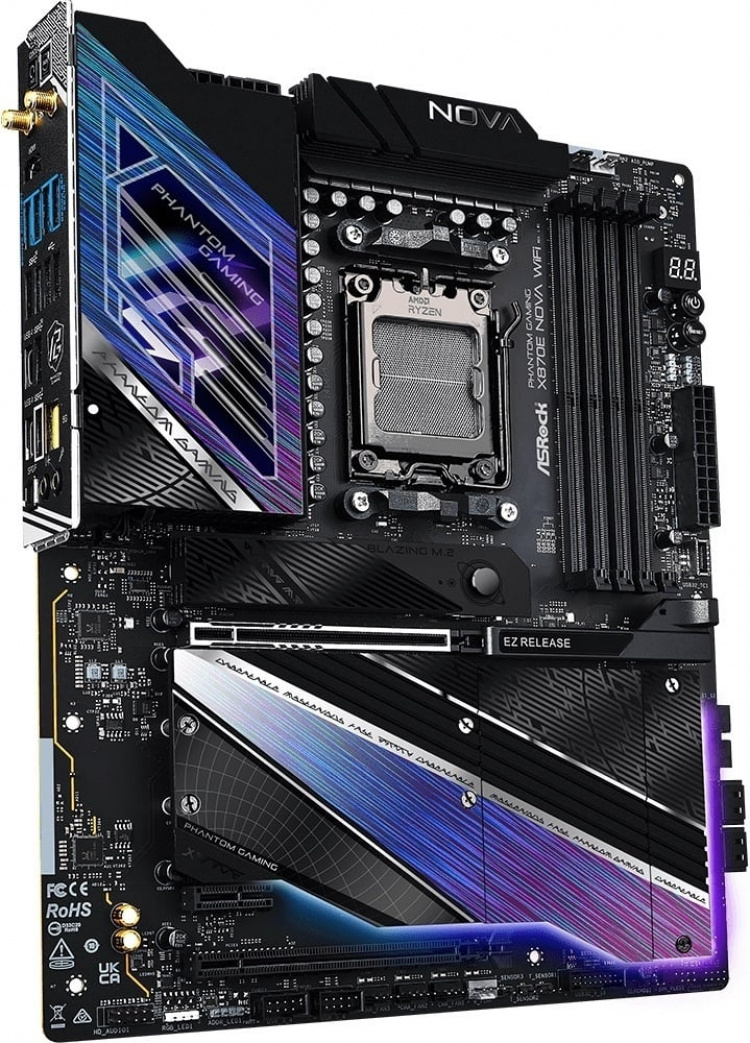

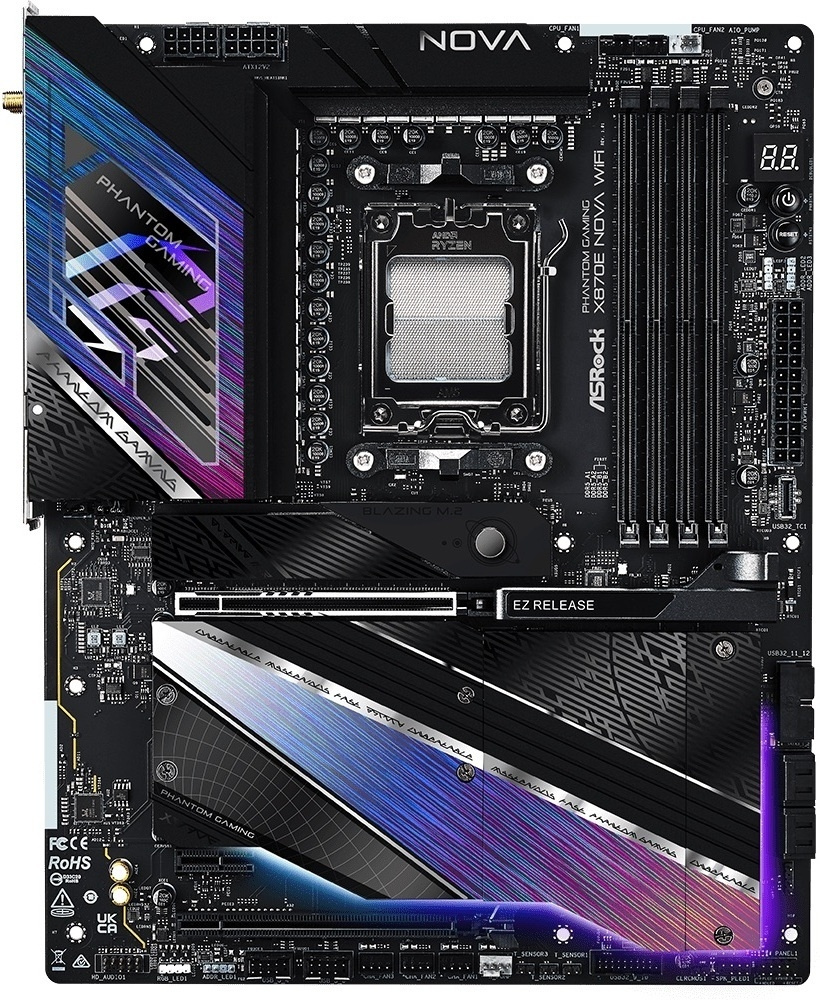

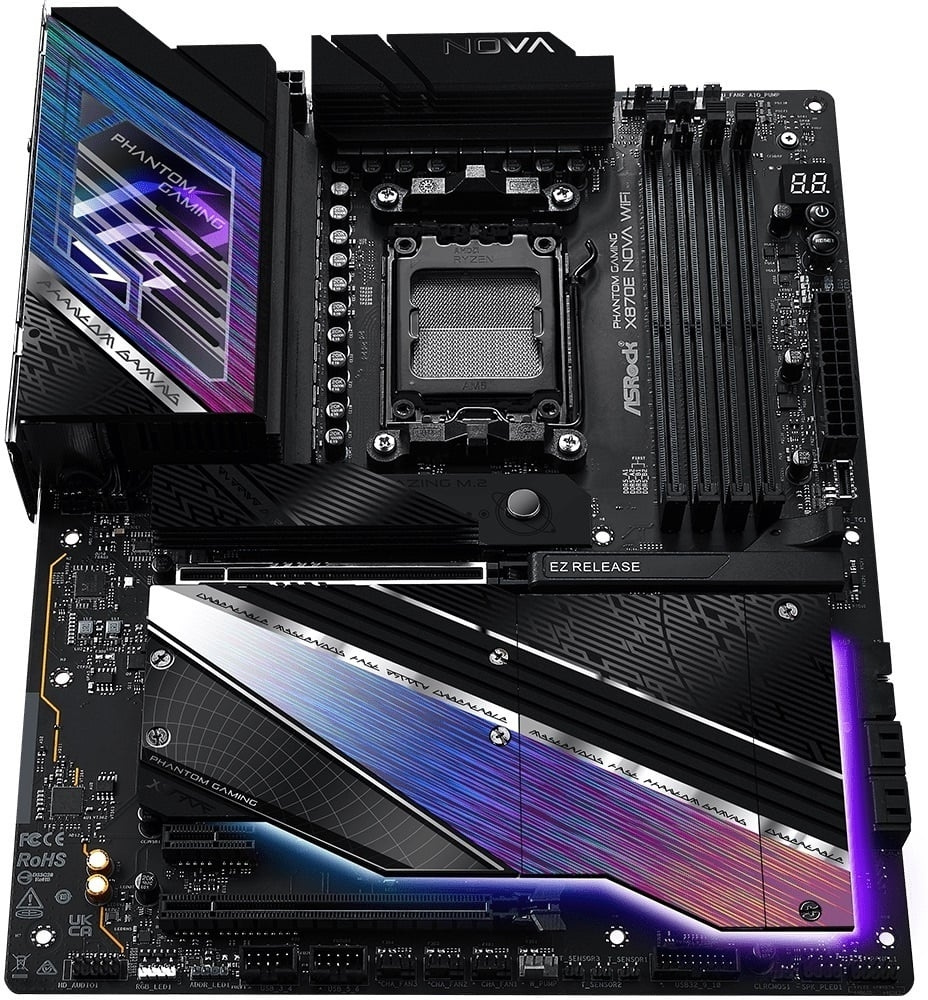

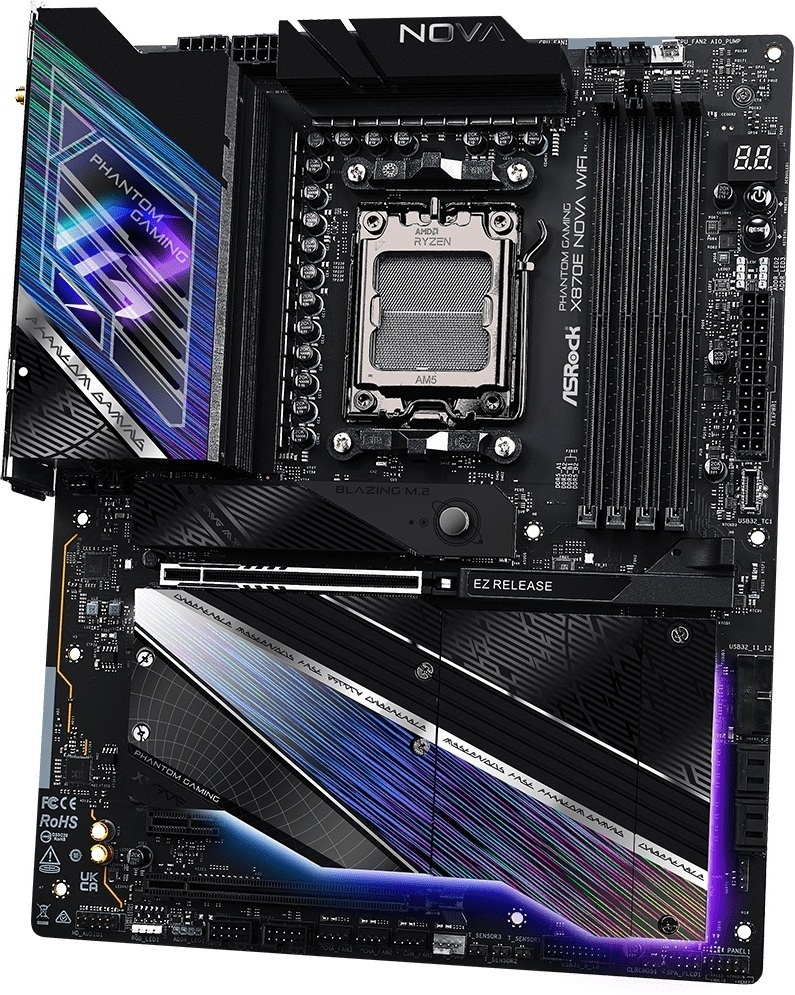

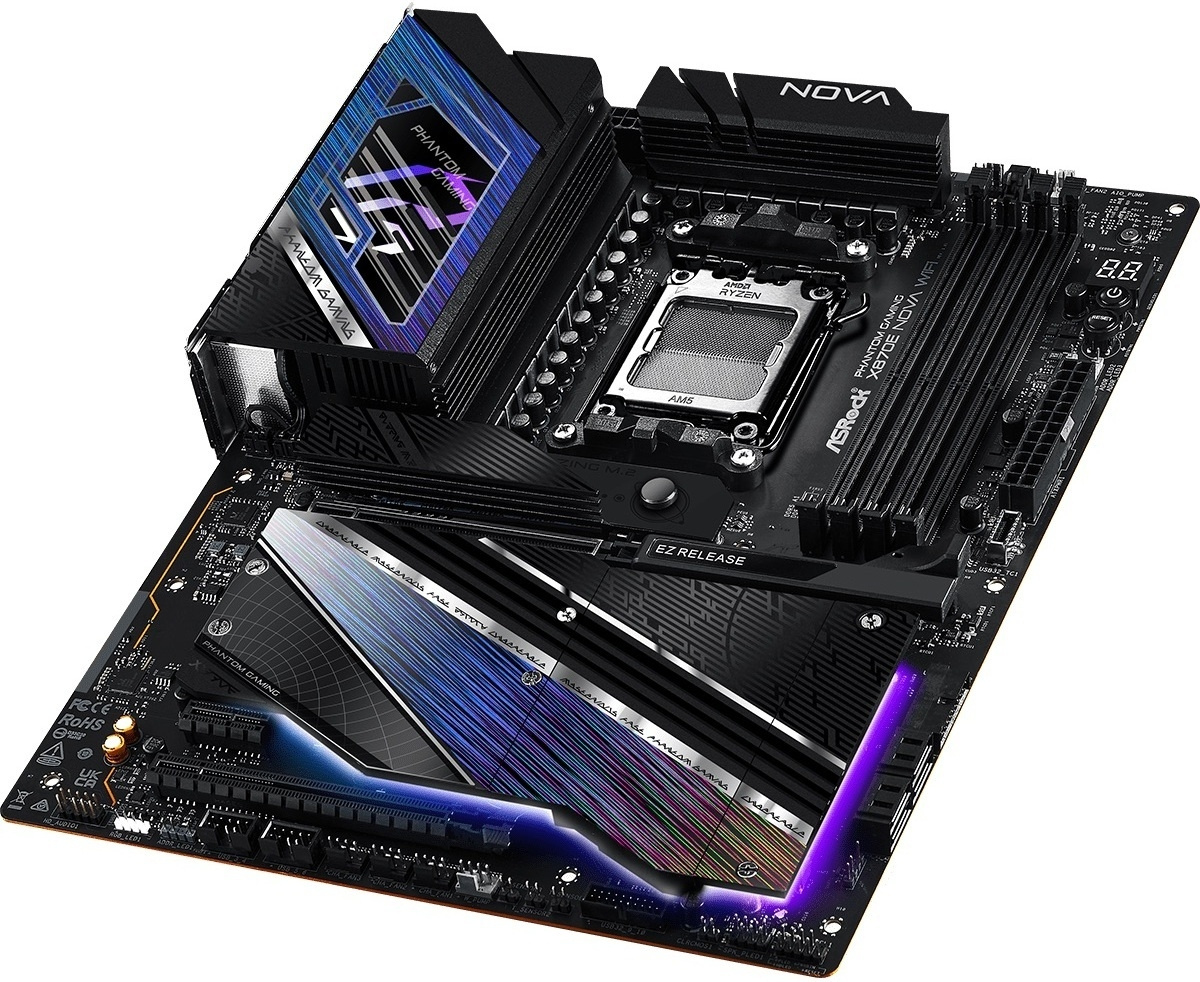

ASRock De X870E Nova WiFi is een topklasse AM5-ATX-moederbord voor Ryzen-processoren uit de 7000/8000/9000-serie.
De Nova WiFi is ontworpen voor veeleisende gebruikers, zoals gamers en contentmakers. Het moederbord heeft een stijlvol en stoer uiterlijk en bevat alle nieuwste functies, zoals ondersteuning voor DDR5-geheugen, PCIe 5.0-aansluitingen en supersnelle 5G LAN- en WiFi 7-netwerkverbindingen. De X870E Nova WiFi is de ideale keuze voor wie een krachtige en veelzijdige topklasse computerconfiguratie wil bouwen.
ASRock Polychrome RGB Sync
Beheer alle LED-accessoires van de configuratie via de eigen app van ASRock. Het moederbord is voorzien van een RGB-header en een geadresseerde RGB-header, waarop LED-producten kunnen worden aangesloten en waarvan de werking kan worden gesynchroniseerd tot een indrukwekkend lichtkunstwerk. De applicatie ASRock is compatibel met Razer Chroma; ook ondersteunde randapparatuur kan via hetzelfde programma worden beheerd.
- Ondersteunt AMD Ryzen 9000-, 8000- en 7000-serie processors
- 20+2+1-fase stroomvoorziening
- Ondersteuning voor 4 x DDR5 DIMM-geheugen, tot 8200 MHz+ (OC)
- 1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
- 5 x M.2-aansluitingen, 4 x SATA
- 5G LAN, Wi-Fi 7 + Bluetooth
Kenmerken:
- Chipset: AMD X870E
- Processorsocket: AM5
- Processorondersteuning: AMD Ryzen 7000 / 8000 / 9000-serie
- Moederbordformaat: ATX (30,5 x 24,4 cm)
- Geheugenslots (aantal): 4
- Geheugentype: DDR5 (Dual Channel), ECC/non-ECC, on-buffered, tot 8200+(OC) MHz
- Maximale hoeveelheid geheugen (GB): 256
- Netwerkaansluitingen: Realtek RTL8126 5 Gigabit LAN, Wi-Fi 7 (802.11be 2x2), Bluetooth 5.4
- Geluidskaart: 7.1 CH HD Audio Content Protection (Realtek ALC4082 Audio Codec), Nahimic Audio
Uitbreidingsslots
- CPU
1 x PCIe 5.0 x16-sleuf (PCIE1), ondersteunt x16-modus - Chipset
1 x PCIe 3.0 x1-sleuf (PCIE2), ondersteunt x1-modus
1 x PCIe 3.0 x16-sleuf (PCIE3), ondersteunt x2-modus
1 x verticale M.2-aansluiting (Key E), ondersteunt type 2230 WiFi/BT PCIe WiFi-module
Harde-schijf-aansluitingen
- 4 x SATA 6 Gb/s-poorten
- CPU
1 x Blazing M.2-aansluiting (M2_1, Key M), ondersteunt type 2280 PCIe Gen5x4 (128 Gb/s) modus - Chipset
1 x Hyper M.2-aansluiting (M2_2, Key M), ondersteunt type 2280 PCIe Gen4x4 (64 Gb/s) modus
1 x Hyper M.2-aansluiting (M2_3, Key M), ondersteunt type 2280 PCIe Gen4x4 (64 Gb/s) modus
1 x Hyper M.2-aansluiting (M2_4, Key M), ondersteunt type 2280 PCIe Gen4x4 (64 Gb/s) modus
1 x M.2-aansluiting (M2_5, Key M), ondersteunt type 2280 SATA3 6,0 Gb/s & PCIe Gen3x2 (16 Gb/s) modi

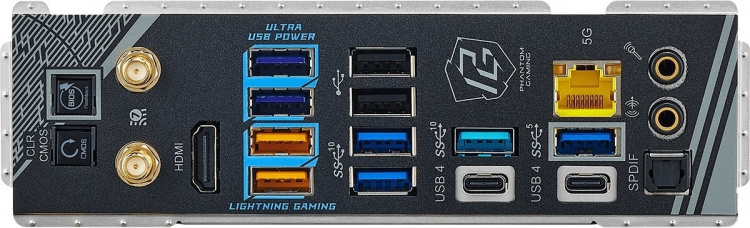

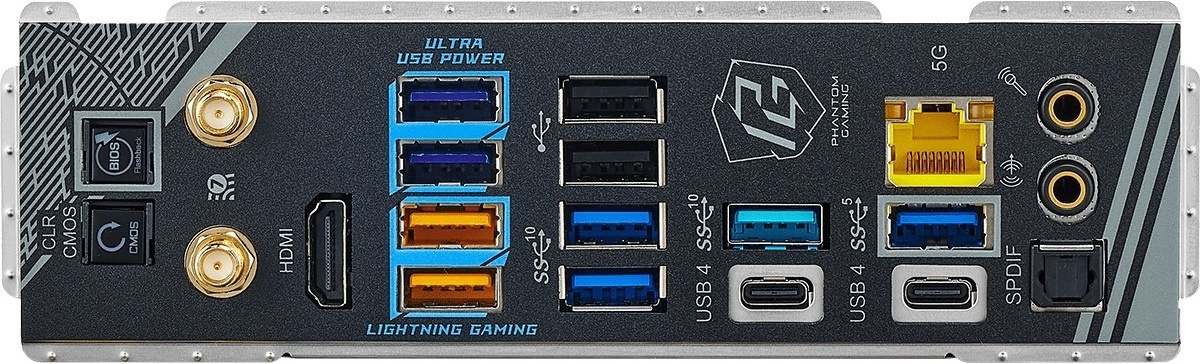

Aansluitingen op het achterpaneel
- 2 x antennepoorten
- 1 x HDMI-poort
- 1 x optische SPDIF-uitgang
- 2 x USB4 Type-C-poorten (40 Gb/s)
- 5 x USB 3.2 Gen2 Type-A-poorten (10 Gb/s) (USB32_12 zijn Lightning Gaming-poorten)
- 3 x USB 3.2 Gen1 Type-A-poorten (USB32_34 ondersteunt Ultra USB Power)
- 2 x USB 2.0-poorten
- 1 x RJ-45 LAN-poort
- 1 x Clear CMOS-knop
- 1 x BIOS Flashback-knop
- 1 x Line-out-aansluiting (vergulde audio-aansluiting)
- 1 x microfooningang (vergulde audio-aansluiting)
Interne aansluitingen
- 3 x thermistorkabelconnectoren
- 1 x Power-LED- en luidspreker-header
- 1 x RGB-LED-aansluiting
- 3 x aansluitingen voor adresseerbare LED's
- 2 x CPU-ventilatorconnector (4-pins) (slimme ventilatorsnelheidsregeling)
- 3 x Chassisventilatorconnectoren (4-pins) (slimme ventilatorsnelheidsregeling)
- 1 x AIO-pompventilatorconnector (4-pins) (slimme ventilatorsnelheidsregeling)
- 1 x waterpompventilatorconnector (4-pins) (slimme ventilatorsnelheidsregeling)
- 1 x 24-pins ATX-voedingsconnector (Hi-Density Power Connector)
- 2 x 8-pins 12V-voedingsaansluitingen (Hi-Density Power Connector)
- 1 x audio-aansluiting voorpaneel (15μ vergulde audio-aansluiting)
- 2 x USB 2.0-aansluitingen (ondersteunt 4 USB 2.0-poorten)
- 2 x USB 3.2 Gen1-aansluitingen (ondersteunt 4 USB 3.2 Gen1-poorten)
- 1 x Type C USB 3.2 Gen2x2-header op het voorpaneel (20 Gb/s)
- 1 x Dr. Debug met LED
- 1 x Aan/uit-knop met LED
- 1 x resetknop met LED
- AMD AM5 ATX-moederbord
- AMD X870E-chipset
- 5G LAN, WiFi 7, Bluetooth 5.4
- 5 x M.2-slots, 4 x DDR5
- Ondersteunt de AMD Ryzen 9000-serie
